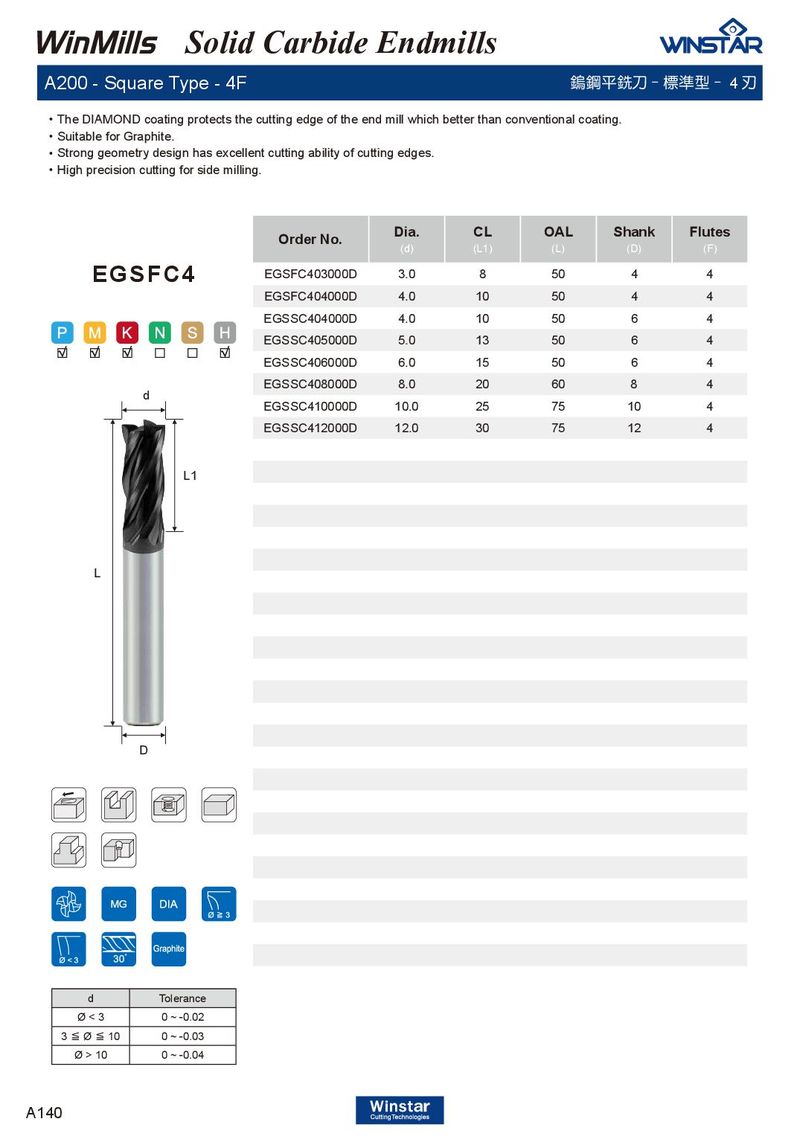

．The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ．Suitable for Graphite. ．Strong geometry design has excellent cutting ability of cutting edges. ．High precision cutting for side milling.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EGSFC403000D | 3.0 | 8 | 50 | 4 | 4 |
| EGSFC404000D | 4.0 | 10 | 50 | 4 | 4 |
| EGSSC404000D | 4.0 | 10 | 50 | 6 | 4 |
| EGSSC405000D | 5.0 | 13 | 50 | 6 | 4 |
| EGSSC406000D | 6.0 | 15 | 50 | 6 | 4 |
| EGSSC408000D | 8.0 | 20 | 60 | 8 | 4 |
| EGSSC410000D | 10.0 | 25 | 75 | 10 | 4 |
| EGSSC412000D | 12.0 | 30 | 75 | 12 | 4 |
EGSFC4
d
L1
L
D
| d | Tolerance |
| Ø < 3 | 0 ~ -0.02 |
| 3≦Ø≦10 | 0 ~ -0.03 |
| Ø > 10 | 0 ~ -0.04 |
