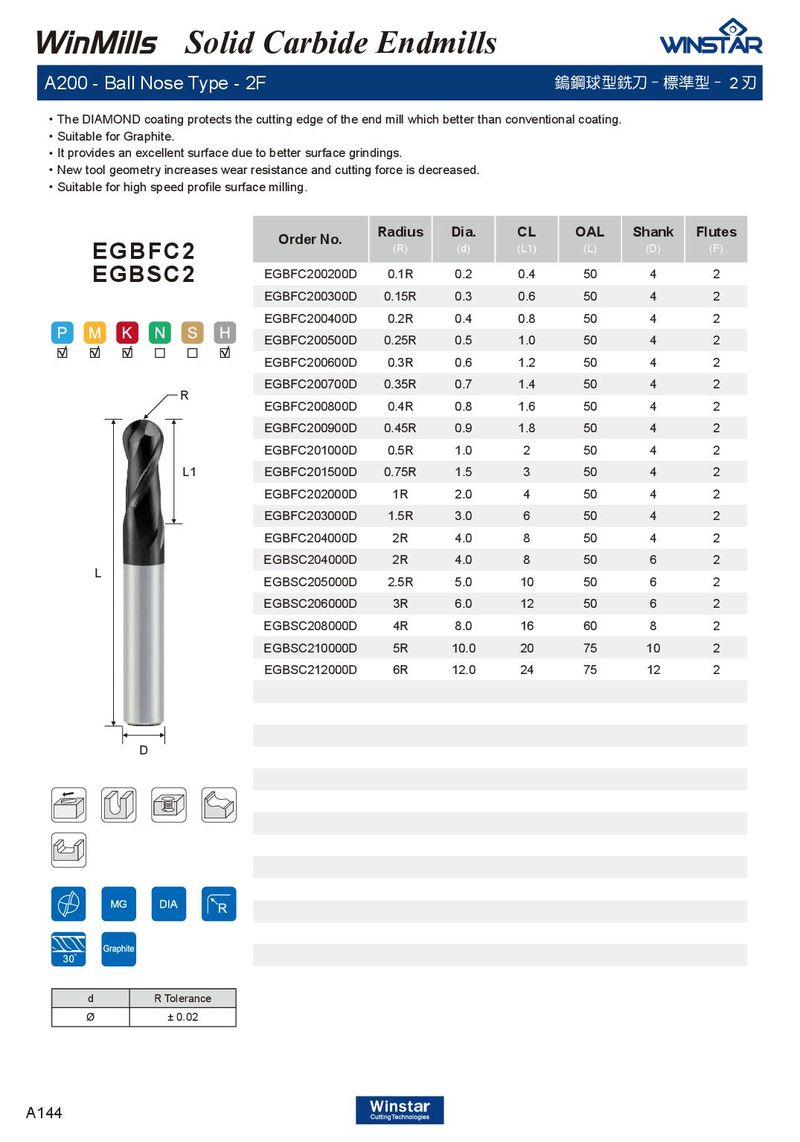

A200 - Ball Nose Type - 2F 鎢鋼球型銑刀 - 標準型 - 2 刃
．The DIAMOND coating protects the cutting edge of the end mill which better than conventional coating. ．Suitable for Graphite. ．It provides an excellent surface due to better surface grindings. ．New tool geometry increases wear resistance and cutting force is decreased. ．Suitable for high speed profile surface milling.
| Order No. | Radius (R) | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EGBFC200200D | 0.1R | 0.2 | 0.4 | 50 | 4 | 2 |
| EGBFC200300D | 0.15R | 0.3 | 0.6 | 50 | 4 | 2 |
| EGBFC200400D | 0.2R | 0.4 | 0.8 | 50 | 4 | 2 |
| EGBFC200500D | 0.25R | 0.5 | 1.0 | 50 | 4 | 2 |
| EGBFC200600D | 0.3R | 0.6 | 1.2 | 50 | 4 | 2 |
| EGBFC200700D | 0.35R | 0.7 | 1.4 | 50 | 4 | 2 |
| EGBFC200800D | 0.4R | 0.8 | 1.6 | 50 | 4 | 2 |
| EGBFC200900D | 0.45R | 0.9 | 1.8 | 50 | 4 | 2 |
| EGBFC201000D | 0.5R | 1.0 | 2 | 50 | 4 | 2 |
| EGBFC201500D | 0.75R | 1.5 | 3 | 50 | 4 | 2 |
| EGBFC202000D | 1R | 2.0 | 4 | 50 | 4 | 2 |
| EGBFC203000D | 1.5R | 3.0 | 6 | 50 | 4 | 2 |
| EGBFC204000D | 2R | 4.0 | 8 | 50 | 4 | 2 |
| EGBSC204000D | 2R | 4.0 | 8 | 50 | 6 | 2 |
| EGBSC205000D | 2.5R | 5.0 | 10 | 50 | 6 | 2 |
| EGBSC206000D | 3R | 6.0 | 12 | 50 | 6 | 2 |
| EGBSC208000D | 4R | 8.0 | 16 | 60 | 8 | 2 |
| EGBSC210000D | 5R | 10.0 | 20 | 75 | 10 | 2 |
| EGBSC212000D | 6R | 12.0 | 24 | 75 | 12 | 2 |
EGBSC2
R
L
D
d R Tolerance Ø ± 0.02
