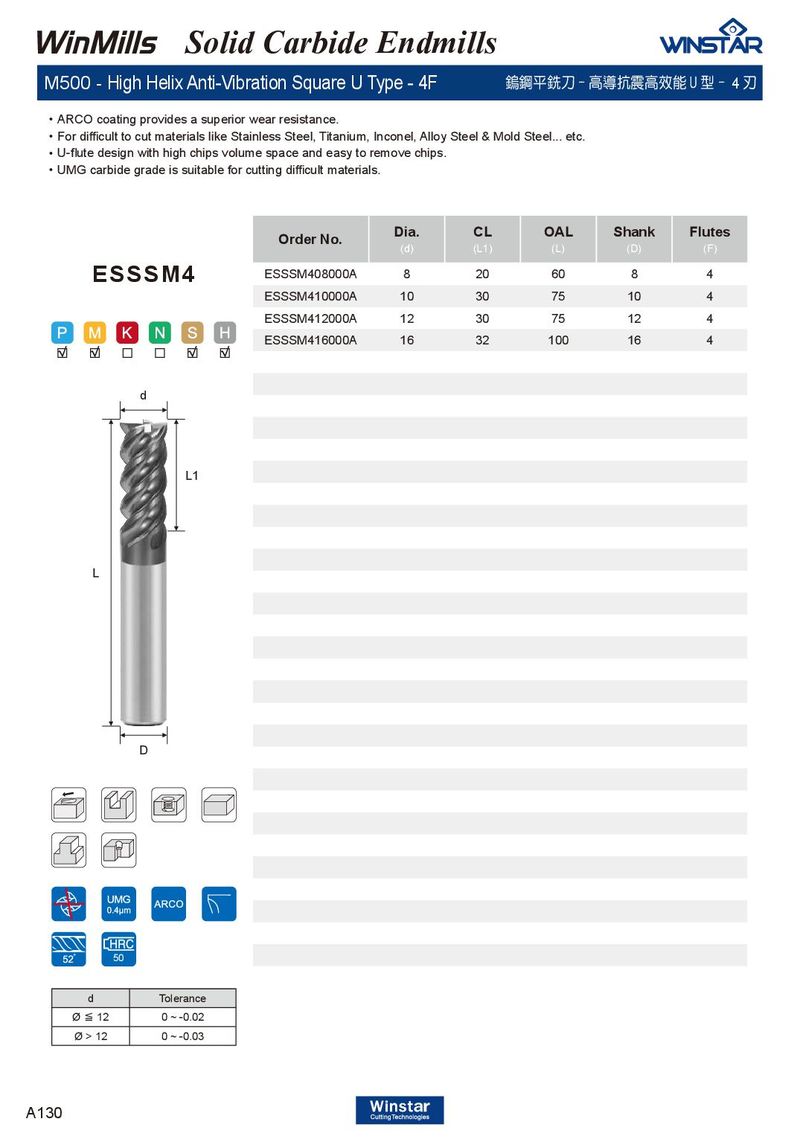

M500 - High Helix Anti-Vibration Square U Type - 4F 鎢鋼平銑刀 - 高導抗震高效能 U 型 - 4 刃
．ARCO coating provides a superior wear resistance. ．For difficult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc. ．U-flute design with high chips volume space and easy to remove chips. ．UMG carbide grade is suitable for cutting difficult materials.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ESSSM408000A | 8 | 20 | 60 | 8 | 4 |
| ESSSM410000A | 10 | 30 | 75 | 10 | 4 |
| ESSSM412000A | 12 | 30 | 75 | 12 | 4 |
| ESSSM416000A | 16 | 32 | 100 | 16 | 4 |
ESSSM4
d
L1
L
D
50
| d | Tolerance |
| Ø≦12 | 0 ~ -0.02 |
| Ø > 12 | 0 ~ -0.03 |
