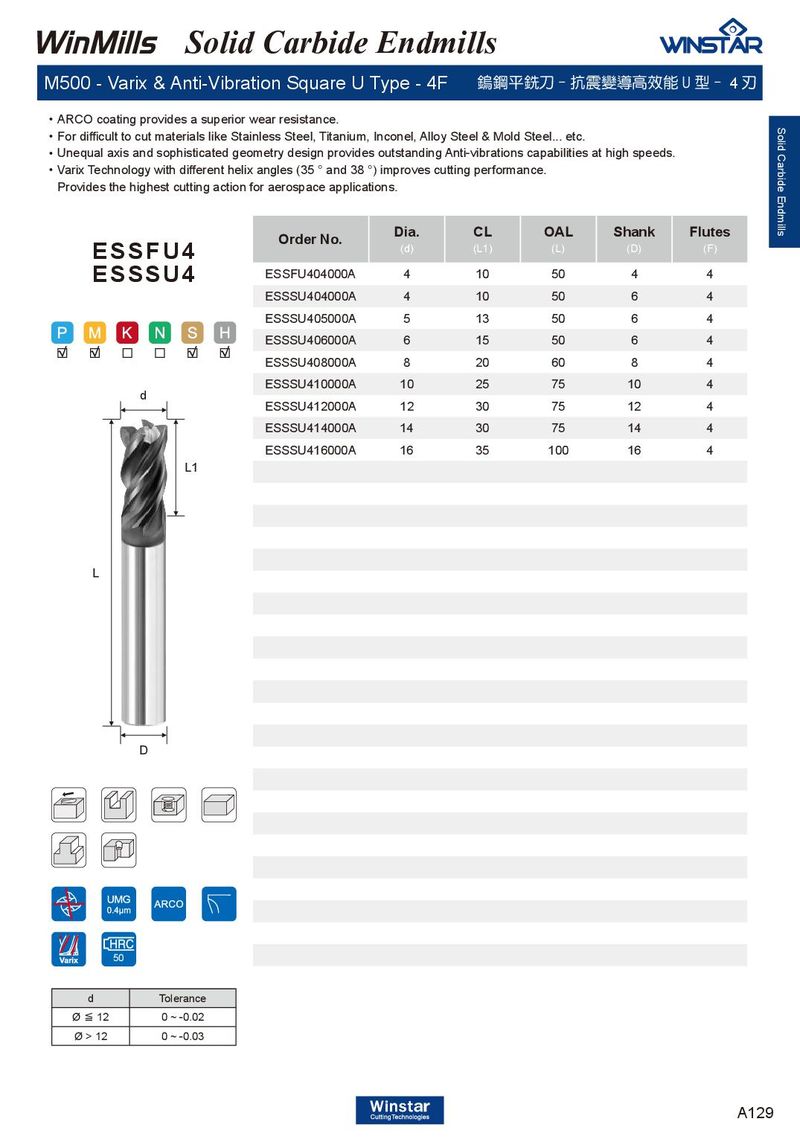

M500 - Varix & Anti-Vibration Square U Type - 4F 鎢鋼平銑刀 - 抗震變導高效能 U 型 - 4 刃
．ARCO coating provides a superior wear resistance. ．For difficult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc. ．Unequal axis and sophisticated geometry design provides outstanding Anti-vibrations capabilities at high speeds. ．Varix Technology with different helix angles (35 ° and 38 °) improves cutting performance. Provides the highest cutting action for aerospace applications.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ESSFU404000A | 4 | 10 | 50 | 4 | 4 |
| ESSSU404000A | 4 | 10 | 50 | 6 | 4 |
| ESSSU405000A | 5 | 13 | 50 | 6 | 4 |
| ESSSU406000A | 6 | 15 | 50 | 6 | 4 |
| ESSSU408000A | 8 | 20 | 60 | 8 | 4 |
| ESSSU410000A | 10 | 25 | 75 | 10 | 4 |
| ESSSU412000A | 12 | 30 | 75 | 12 | 4 |
| ESSSU414000A | 14 | 30 | 75 | 14 | 4 |
| ESSSU416000A | 16 | 35 | 100 | 16 | 4 |
ESSSU4
d
L1
L
D
50
| d | Tolerance |
| Ø≦12 | 0 ~ -0.02 |
| Ø > 12 | 0 ~ -0.03 |
