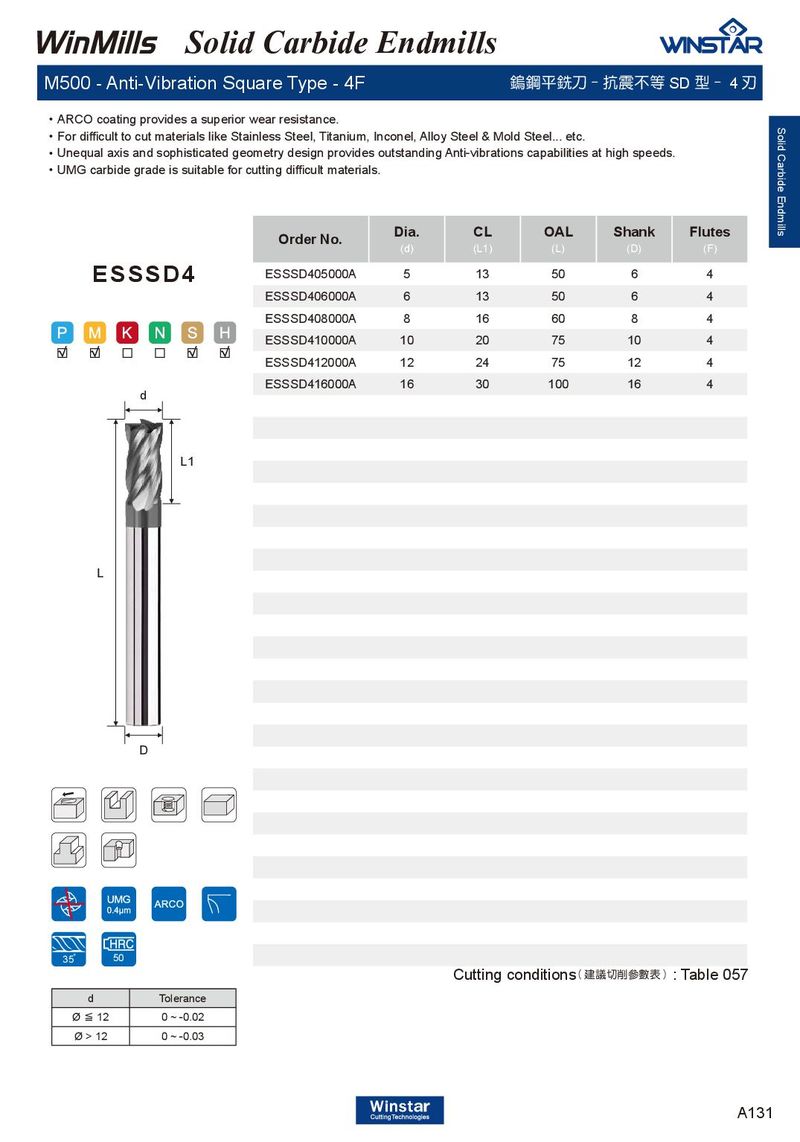

M500 - Anti-Vibration Square Type - 4F 鎢鋼平銑刀 - 抗震不等 SD 型 - 4 刃
．ARCO coating provides a superior wear resistance. ．For difficult to cut materials like Stainless Steel, Titanium, Inconel, Alloy Steel & Mold Steel... etc. ．Unequal axis and sophisticated geometry design provides outstanding Anti-vibrations capabilities at high speeds. ．UMG carbide grade is suitable for cutting difficult materials.
| Order No. | Dia. (d) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| ESSSD405000A | 5 | 13 | 50 | 6 | 4 |
| ESSSD406000A | 6 | 13 | 50 | 6 | 4 |
| ESSSD408000A | 8 | 16 | 60 | 8 | 4 |
| ESSSD410000A | 10 | 20 | 75 | 10 | 4 |
| ESSSD412000A | 12 | 24 | 75 | 12 | 4 |
| ESSSD416000A | 16 | 30 | 100 | 16 | 4 |
ESSSD4
d
L1
L
D
35 50
Cutting conditions : Table 057
( 建議切削參數表 )
| d | Tolerance |
| Ø≦12 | 0 ~ -0.02 |
| Ø > 12 | 0 ~ -0.03 |
