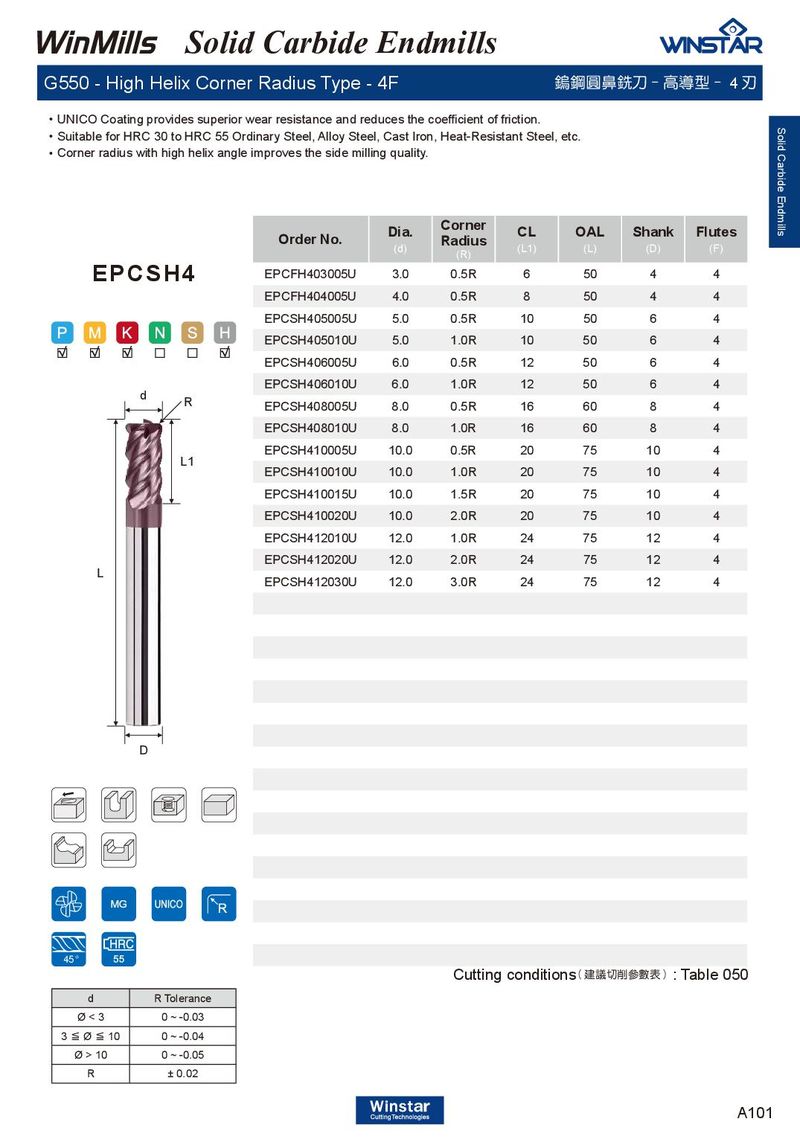

G550 - High Helix Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 高導型 - 4 刃
．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Corner radius with high helix angle improves the side milling quality.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPCFH403005U | 3.0 | 0.5R | 6 | 50 | 4 | 4 |
| EPCFH404005U | 4.0 | 0.5R | 8 | 50 | 4 | 4 |
| EPCSH405005U | 5.0 | 0.5R | 10 | 50 | 6 | 4 |
| EPCSH405010U | 5.0 | 1.0R | 10 | 50 | 6 | 4 |
| EPCSH406005U | 6.0 | 0.5R | 12 | 50 | 6 | 4 |
| EPCSH406010U | 6.0 | 1.0R | 12 | 50 | 6 | 4 |
| EPCSH408005U | 8.0 | 0.5R | 16 | 60 | 8 | 4 |
| EPCSH408010U | 8.0 | 1.0R | 16 | 60 | 8 | 4 |
| EPCSH410005U | 10.0 | 0.5R | 20 | 75 | 10 | 4 |
| EPCSH410010U | 10.0 | 1.0R | 20 | 75 | 10 | 4 |
| EPCSH410015U | 10.0 | 1.5R | 20 | 75 | 10 | 4 |
| EPCSH410020U | 10.0 | 2.0R | 20 | 75 | 10 | 4 |
| EPCSH412010U | 12.0 | 1.0R | 24 | 75 | 12 | 4 |
| EPCSH412020U | 12.0 | 2.0R | 24 | 75 | 12 | 4 |
| EPCSH412030U | 12.0 | 3.0R | 24 | 75 | 12 | 4 |
EPCSH4
d R
L1
L
D
45°
Cutting conditions : Table 050
( 建議切削參數表 )
| d | R Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
| R | ± 0.02 |
