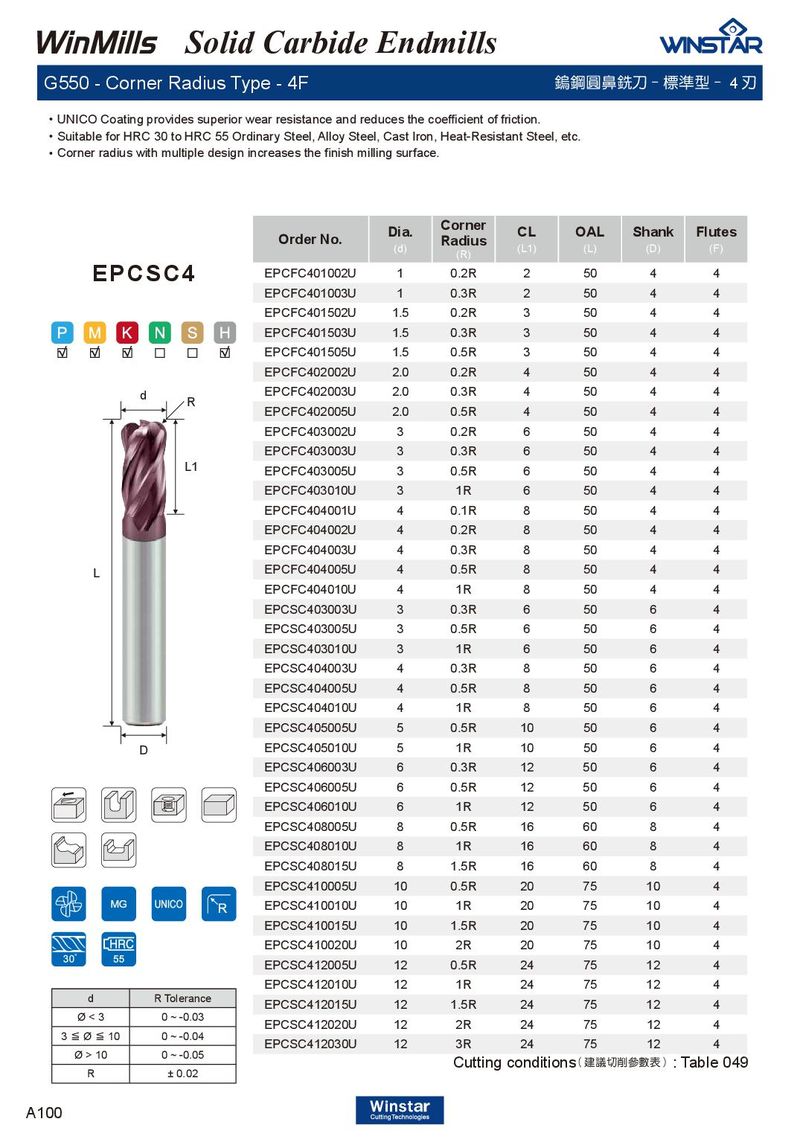

G550 - Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 標準型 - 4 刃
．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Corner radius with multiple design increases the finish milling surface.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPCFC401002U | 1 | 0.2R | 2 | 50 | 4 | 4 |
| EPCFC401003U | 1 | 0.3R | 2 | 50 | 4 | 4 |
| EPCFC401502U | 1.5 | 0.2R | 3 | 50 | 4 | 4 |
| EPCFC401503U | 1.5 | 0.3R | 3 | 50 | 4 | 4 |
| EPCFC401505U | 1.5 | 0.5R | 3 | 50 | 4 | 4 |
| EPCFC402002U | 2.0 | 0.2R | 4 | 50 | 4 | 4 |
| EPCFC402003U | 2.0 | 0.3R | 4 | 50 | 4 | 4 |
| EPCFC402005U | 2.0 | 0.5R | 4 | 50 | 4 | 4 |
| EPCFC403002U | 3 | 0.2R | 6 | 50 | 4 | 4 |
| EPCFC403003U | 3 | 0.3R | 6 | 50 | 4 | 4 |
| EPCFC403005U | 3 | 0.5R | 6 | 50 | 4 | 4 |
| EPCFC403010U | 3 | 1R | 6 | 50 | 4 | 4 |
| EPCFC404001U | 4 | 0.1R | 8 | 50 | 4 | 4 |
| EPCFC404002U | 4 | 0.2R | 8 | 50 | 4 | 4 |
| EPCFC404003U | 4 | 0.3R | 8 | 50 | 4 | 4 |
| EPCFC404005U | 4 | 0.5R | 8 | 50 | 4 | 4 |
| EPCFC404010U | 4 | 1R | 8 | 50 | 4 | 4 |
| EPCSC403003U | 3 | 0.3R | 6 | 50 | 6 | 4 |
| EPCSC403005U | 3 | 0.5R | 6 | 50 | 6 | 4 |
| EPCSC403010U | 3 | 1R | 6 | 50 | 6 | 4 |
| EPCSC404003U | 4 | 0.3R | 8 | 50 | 6 | 4 |
| EPCSC404005U | 4 | 0.5R | 8 | 50 | 6 | 4 |
| EPCSC404010U | 4 | 1R | 8 | 50 | 6 | 4 |
| EPCSC405005U | 5 | 0.5R | 10 | 50 | 6 | 4 |
| EPCSC405010U | 5 | 1R | 10 | 50 | 6 | 4 |
| EPCSC406003U | 6 | 0.3R | 12 | 50 | 6 | 4 |
| EPCSC406005U | 6 | 0.5R | 12 | 50 | 6 | 4 |
| EPCSC406010U | 6 | 1R | 12 | 50 | 6 | 4 |
| EPCSC408005U | 8 | 0.5R | 16 | 60 | 8 | 4 |
| EPCSC408010U | 8 | 1R | 16 | 60 | 8 | 4 |
| EPCSC408015U | 8 | 1.5R | 16 | 60 | 8 | 4 |
| EPCSC410005U | 10 | 0.5R | 20 | 75 | 10 | 4 |
| EPCSC410010U | 10 | 1R | 20 | 75 | 10 | 4 |
| EPCSC410015U | 10 | 1.5R | 20 | 75 | 10 | 4 |
| EPCSC410020U | 10 | 2R | 20 | 75 | 10 | 4 |
| EPCSC412005U | 12 | 0.5R | 24 | 75 | 12 | 4 |
| EPCSC412010U | 12 | 1R | 24 | 75 | 12 | 4 |
| EPCSC412015U | 12 | 1.5R | 24 | 75 | 12 | 4 |
| EPCSC412020U | 12 | 2R | 24 | 75 | 12 | 4 |
| EPCSC412030U | 12 | 3R | 24 | 75 | 12 | 4 |
EPCSC4
R
| d | R Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
| R | ± 0.02 |
