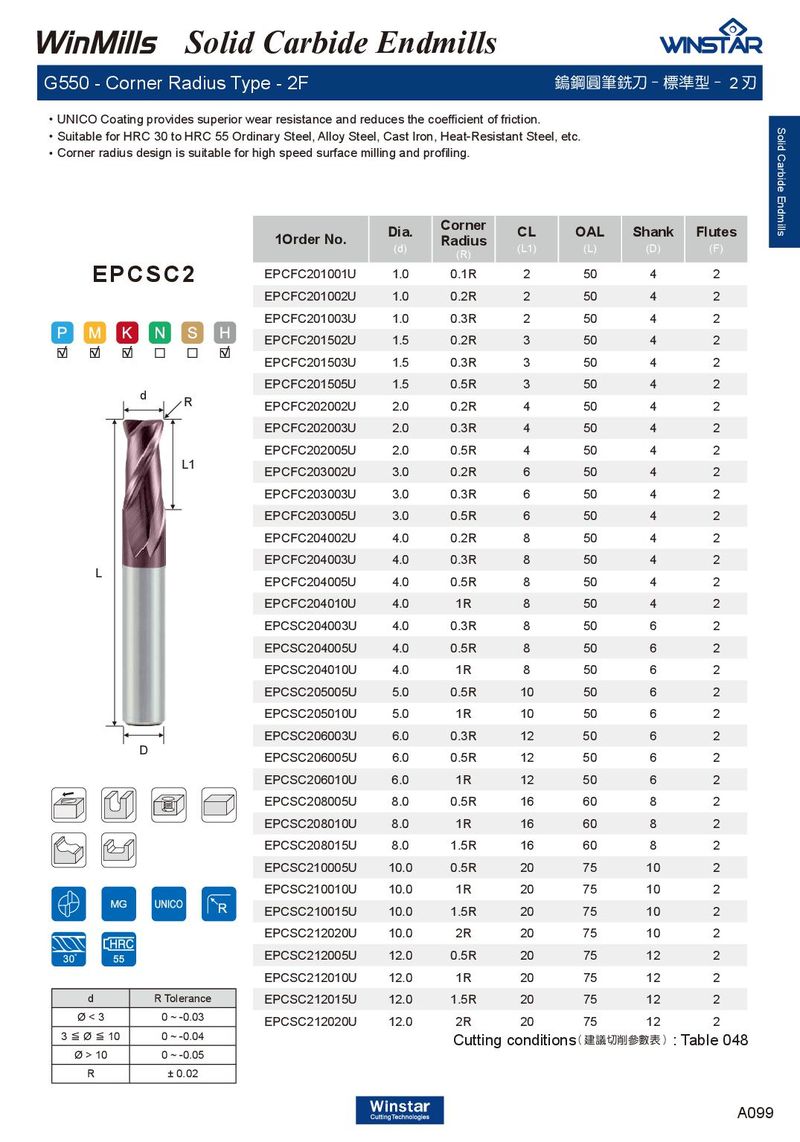

G550 - Corner Radius Type - 2F 鎢鋼圓筆銑刀 - 標準型 - 2 刃
．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Corner radius design is suitable for high speed surface milling and profiling.
| 1Order No. | Dia. (d) | Corner Radius | CL (L1) | OAL (L) | Shank (D) | Flutes (F) | |
| EPCSC2 | EPCFC201001U | 1.0 | (R) 0.1R | 2 | 50 | 4 | 2 |
| EPCFC201002U | 1.0 | 0.2R | 2 | 50 | 4 | 2 | |
| EPCFC201003U | 1.0 | 0.3R | 2 | 50 | 4 | 2 | |
| EPCFC201502U | 1.5 | 0.2R | 3 | 50 | 4 | 2 | |
| EPCFC201503U | 1.5 | 0.3R | 3 | 50 | 4 | 2 | |
| EPCFC201505U | 1.5 | 0.5R | 3 | 50 | 4 | 2 | |
| d R | EPCFC202002U | 2.0 | 0.2R | 4 | 50 | 4 | 2 |
| EPCFC202003U | 2.0 | 0.3R | 4 | 50 | 4 | 2 | |
| EPCFC202005U | 2.0 | 0.5R | 4 | 50 | 4 | 2 | |
| L1 | EPCFC203002U | 3.0 | 0.2R | 6 | 50 | 4 | 2 |
| EPCFC203003U | 3.0 | 0.3R | 6 | 50 | 4 | 2 | |
| EPCFC203005U | 3.0 | 0.5R | 6 | 50 | 4 | 2 | |
| EPCFC204002U | 4.0 | 0.2R | 8 | 50 | 4 | 2 | |
| EPCFC204003U | 4.0 | 0.3R | 8 | 50 | 4 | 2 | |
| L | EPCFC204005U | 4.0 | 0.5R | 8 | 50 | 4 | 2 |
| EPCFC204010U | 4.0 | 1R | 8 | 50 | 4 | 2 | |
| EPCSC204003U | 4.0 | 0.3R | 8 | 50 | 6 | 2 | |
| EPCSC204005U | 4.0 | 0.5R | 8 | 50 | 6 | 2 | |
| EPCSC204010U | 4.0 | 1R | 8 | 50 | 6 | 2 | |
| EPCSC205005U | 5.0 | 0.5R | 10 | 50 | 6 | 2 | |
| EPCSC205010U | 5.0 | 1R | 10 | 50 | 6 | 2 | |
| EPCSC206003U | 6.0 | 0.3R | 12 | 50 | 6 | 2 | |
| D | EPCSC206005U | 6.0 | 0.5R | 12 | 50 | 6 | 2 |
| EPCSC206010U | 6.0 | 1R | 12 | 50 | 6 | 2 | |
| EPCSC208005U | 8.0 | 0.5R | 16 | 60 | 8 | 2 | |
| EPCSC208010U | 8.0 | 1R | 16 | 60 | 8 | 2 | |
| EPCSC208015U | 8.0 | 1.5R | 16 | 60 | 8 | 2 | |
| EPCSC210005U | 10.0 | 0.5R | 20 | 75 | 10 | 2 | |
| EPCSC210010U | 10.0 | 1R | 20 | 75 | 10 | 2 | |
| EPCSC210015U | 10.0 | 1.5R | 20 | 75 | 10 | 2 | |
| EPCSC212020U | 10.0 | 2R | 20 | 75 | 10 | 2 | |
| EPCSC212005U | 12.0 | 0.5R | 20 | 75 | 12 | 2 | |
| EPCSC212010U | 12.0 | 1R | 20 | 75 | 12 | 2 | |
| d R Tolerance | EPCSC212015U | 12.0 | 1.5R | 20 | 75 | 12 | 2 |
| Ø < 3 0 ~ -0.03 | EPCSC212020U | 12.0 | 2R | 20 | 75 | 12 | 2 |
| 3≦Ø≦10 0 ~ -0.04 | Cutting | conditi | ons( 建議切 | 削參數表): | Table 04 | ||
| Ø > 10 0 ~ -0.05 R ± 0.02 |
