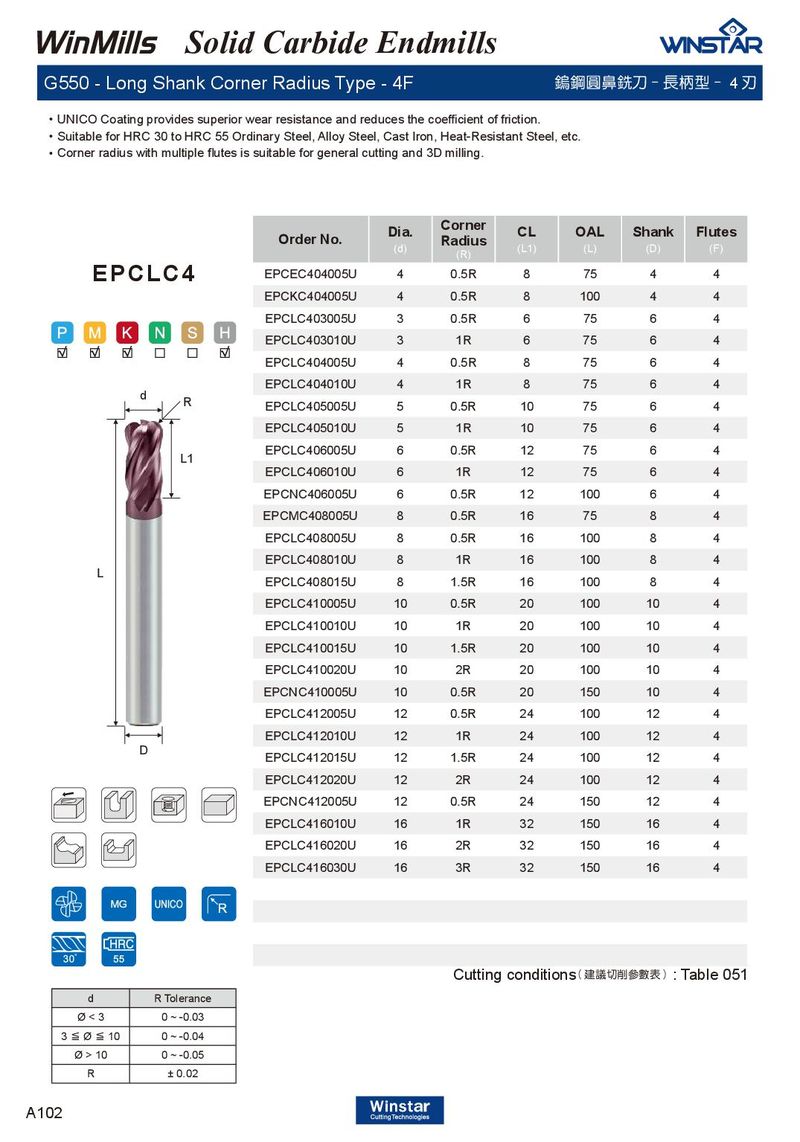

G550 - Long Shank Corner Radius Type - 4F 鎢鋼圓鼻銑刀 - 長柄型 - 4 刃
．UNICO Coating provides superior wear resistance and reduces the coefficient of friction. ．Suitable for HRC 30 to HRC 55 Ordinary Steel, Alloy Steel, Cast Iron, Heat-Resistant Steel, etc. ．Corner radius with multiple flutes is suitable for general cutting and 3D milling.
| Order No. | Dia. (d) | Corner Radius (R) | CL (L1) | OAL (L) | Shank (D) | Flutes (F) |
| EPCEC404005U | 4 | 0.5R | 8 | 75 | 4 | 4 |
| EPCKC404005U | 4 | 0.5R | 8 | 100 | 4 | 4 |
| EPCLC403005U | 3 | 0.5R | 6 | 75 | 6 | 4 |
| EPCLC403010U | 3 | 1R | 6 | 75 | 6 | 4 |
| EPCLC404005U | 4 | 0.5R | 8 | 75 | 6 | 4 |
| EPCLC404010U | 4 | 1R | 8 | 75 | 6 | 4 |
| EPCLC405005U | 5 | 0.5R | 10 | 75 | 6 | 4 |
| EPCLC405010U | 5 | 1R | 10 | 75 | 6 | 4 |
| EPCLC406005U | 6 | 0.5R | 12 | 75 | 6 | 4 |
| EPCLC406010U | 6 | 1R | 12 | 75 | 6 | 4 |
| EPCNC406005U | 6 | 0.5R | 12 | 100 | 6 | 4 |
| EPCMC408005U | 8 | 0.5R | 16 | 75 | 8 | 4 |
| EPCLC408005U | 8 | 0.5R | 16 | 100 | 8 | 4 |
| EPCLC408010U | 8 | 1R | 16 | 100 | 8 | 4 |
| EPCLC408015U | 8 | 1.5R | 16 | 100 | 8 | 4 |
| EPCLC410005U | 10 | 0.5R | 20 | 100 | 10 | 4 |
| EPCLC410010U | 10 | 1R | 20 | 100 | 10 | 4 |
| EPCLC410015U | 10 | 1.5R | 20 | 100 | 10 | 4 |
| EPCLC410020U | 10 | 2R | 20 | 100 | 10 | 4 |
| EPCNC410005U | 10 | 0.5R | 20 | 150 | 10 | 4 |
| EPCLC412005U | 12 | 0.5R | 24 | 100 | 12 | 4 |
| EPCLC412010U | 12 | 1R | 24 | 100 | 12 | 4 |
| EPCLC412015U | 12 | 1.5R | 24 | 100 | 12 | 4 |
| EPCLC412020U | 12 | 2R | 24 | 100 | 12 | 4 |
| EPCNC412005U | 12 | 0.5R | 24 | 150 | 12 | 4 |
| EPCLC416010U | 16 | 1R | 32 | 150 | 16 | 4 |
| EPCLC416020U | 16 | 2R | 32 | 150 | 16 | 4 |
| EPCLC416030U | 16 | 3R | 32 | 150 | 16 | 4 |
EPCLC4
d R
L1
L
D
Cutting conditions : Table 051
( 建議切削參數表 )
| d | R Tolerance |
| Ø < 3 | 0 ~ -0.03 |
| 3≦Ø≦10 | 0 ~ -0.04 |
| Ø > 10 | 0 ~ -0.05 |
| R | ± 0.02 |
