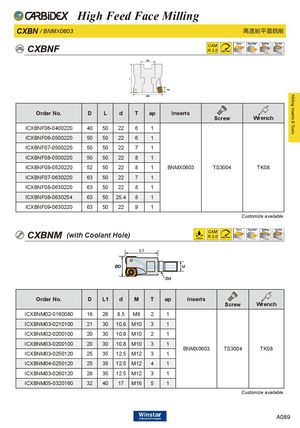

Каталог Carbidex сменные пластины 2020 - страница 91
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
CXBNF
ap
| Order No. | D | L | d | T | ap | Inserts | Screw | Wrench |
| ICXBNF06-0400220 | 40 | 50 | 22 | 6 | 1 | |||
| ICXBNF06-0500220 | 50 | 50 | 22 | 6 | 1 | |||
| ICXBNF07-0500220 | 50 | 50 | 22 | 7 | 1 | |||
| ICXBNF08-0500220 | 50 | 50 | 22 | 8 | 1 | |||
| ICXBNF08-0520220 | 52 | 50 | 22 | 8 | 1 | BNMX0603 | TS3004 | TK08 |
| ICXBNF07-0630220 | 63 | 50 | 22 | 7 | 1 | |||
| ICXBNF08-0630220 | 63 | 50 | 22 | 8 | 1 | |||
| ICXBNF08-0630254 | 63 | 50 | 25.4 | 8 | 1 | |||
| ICXBNF09-0630220 | 63 | 50 | 22 | 9 | 1 |
Customize available.
CXBNM (with Coolant Hole)
ap
| Order No. | D | L1 | d | M | T | ap | Inserts | Screw | Wrench |
| ICXBNM02-0160080 | 16 | 26 | 8.5 | M8 | 2 | 1 | |||
| ICXBNM03-0210100 | 21 | 30 | 10.8 | M10 | 3 | 1 | |||
| ICXBNM02-0200100 | 20 | 30 | 10.8 | M10 | 2 | 1 | |||
| ICXBNM03-0200100 | 20 | 30 | 10.8 | M10 | 3 | 1 | BNMX0603 | TS3004 | TK08 |
| ICXBNM03-0250120 | 25 | 35 | 12.5 | M12 | 3 | 1 | |||
| ICXBNM04-0250120 | 25 | 35 | 12.5 | M12 | 4 | 1 | |||
| ICXBNM03-0260120 | 26 | 35 | 12.5 | M12 | 3 | 1 | |||
| ICXBNM05-0320160 | 32 | 40 | 17 | M16 | 5 | 1 |
Customize available.
