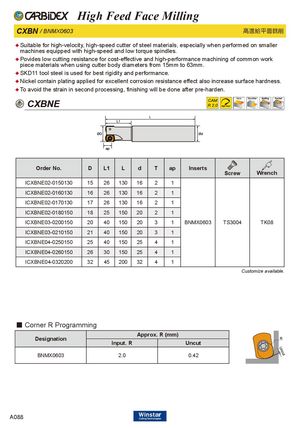

Каталог Carbidex сменные пластины 2020 - страница 90
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
♦Suitable for high-velocity, high-speed cutter of steel materials, especially when performed on smaller
machines equipped with high-speed and low torque spindles.
♦Povides low cutting resistance for cost-effective and high-performance machining of common work
piece materials when using cutter body diameters from 15mm to 63mm. ♦SKD11 tool steel is used for best rigidity and performance. ♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦To avoid the strain in second processing, finishing will be done after pre-harden.
CXBNE
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| ICXBNE02-0150130 | 15 | 26 | 130 | 16 | 2 | 1 | |||
| ICXBNE02-0160130 | 16 | 26 | 130 | 16 | 2 | 1 | |||
| ICXBNE02-0170130 | 17 | 26 | 130 | 16 | 2 | 1 | |||
| ICXBNE02-0180150 | 18 | 25 | 150 | 20 | 2 | 1 | |||
| ICXBNE03-0200150 | 20 | 40 | 150 | 20 | 3 | 1 | BNMX0603 | TS3004 | TK08 |
| ICXBNE03-0210150 | 21 | 40 | 150 | 20 | 3 | 1 | |||
| ICXBNE04-0250150 | 25 | 40 | 150 | 25 | 4 | 1 | |||
| ICXBNE04-0260150 | 26 | 30 | 150 | 25 | 4 | 1 | |||
| ICXBNE04-0320200 | 32 | 45 | 200 | 32 | 4 | 1 | |||
| Cus | tomize available. |
■ Corner R Programming
| Desination | Approx. | R(mm) |
| g | Input. R | Uncut |
| BNMX0603 | 2.0 | 0.42 |
