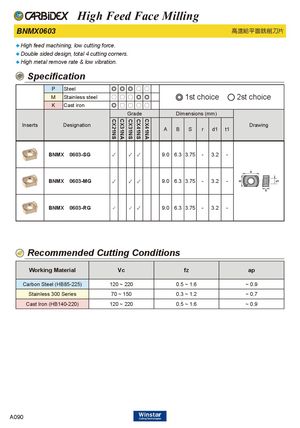

BNMX0603 高進給平面銑削刀片
- High feed machining, low cutting force.
- Double sided design, total 4 cutting corners.
- High metal remove rate & low vibration. Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | ||||||||
| M | Stainless steel | ○ | ○ | ○ | ◎ | ◎ | 1st | cho | ice | 2st choice | ||||
| K | Cast iron | ◎ | ○ | ○ | ○ | ○ | ||||||||
| Gra | de | Dim | ensio | ns( | mm) | |||||||||
| Inserts | Designation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | A | B | S | r | d1 | t1 | Drawing | |
| BNMX | 0603-SG | ✓ | ✓ | ✓ | 9.0 | 6.3 | 3.75 | - | 3.2 | - | ||||
| BNMX | 0603-MG | ✓ | ✓ | ✓ | 9.0 | 6.3 | 3.75 | - | 3.2 | - | ||||
| BNMX | 0603-RG | ✓ | ✓ | ✓ | 9.0 | 6.3 | 3.75 | - | 3.2 | - |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 120 ~ 220 | 0.5 ~ 1.6 | ~ 0.9 |
| Stainless 300 Series | 70 ~ 150 | 0.3 ~ 1.2 | ~ 0.7 |
| Cast Iron (HB140-220) | 120 ~ 220 | 0.5 ~ 1.6 | ~ 0.9 |
