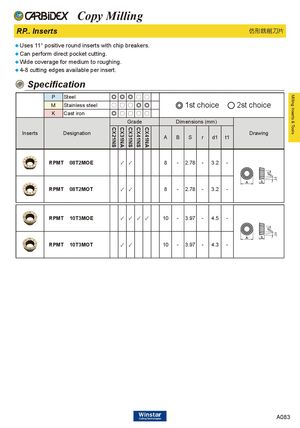

RP.. Inserts 仿形銑削刀片
- Uses 11° positive round inserts with chip breakers.
- Can perform direct pocket cutting.
- Wide coverage for medium to roughing.
- 4-8 cutting edges available per insert. Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | |||||||||
| M K | Stainless steel Cast iron | ○ ◎ | ○ ○ | ○ ○ | ◎ ○ | ◎ ○ | 1st | cho | ice | 2st ch | oice | ||||
| Gra | de | Di | mensio | ns( | mm) | ||||||||||
| Inserts | Designation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | A | B | S | r | d1 | t1 | Dr | awing | |
| RPMT | 08T2MOE | ✓ | ✓ | 8 | - | 2.78 | - | 3.2 | - | ||||||
| RPMT | 08T2MOT | ✓ | ✓ | 8 | - | 2.78 | - | 3.2 | - | ||||||
| RPMT | 10T3MOE | ✓ | ✓ | ✓ | ✓ | 10 | - | 3.97 | - | 4.5 | - | ||||
| RPMT | 10T3MOT | ✓ | ✓ | 10 | - | 3.97 | - | 4.3 | - |
