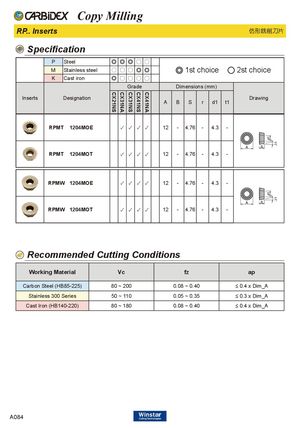

RP.. Inserts 仿形銑削刀片
Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | |||||||||
| M K | Stainless steel Cast iron | ○ ◎ | ○ ○ | ○ ○ | ◎ ○ | ◎ ○ | 1st | ch | oice | 2st ch | oice | ||||
| Gra | de | Di | mensio | ns( | mm) | ||||||||||
| Inserts | D | esignation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | A | B | S | r | d1 | t1 | Dr | awing |
| RPMT | 1204MOE | ✓ | ✓ | ✓ | ✓ | 12 | - | 4.76 | - | 4.3 | - | ||||
| RPMT | 1204MOT | ✓ | ✓ | ✓ | ✓ | 12 | - | 4.76 | - | 4.3 | - | ||||
| RPMW | 1204MOE | ✓ | ✓ | ✓ | ✓ | 12 | - | 4.76 | - | 4.3 | - | ||||
| RPMW | 1204MOT | ✓ | ✓ | ✓ | ✓ | 12 | - | 4.76 | - | 4.3 | - |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.08 ~ 0.40 | ≤ 0.4 x DimA |
| Stainless 300 Series | 50 ~ 110 | 0.05 ~ 0.35 | ≤ 0.3 x DimA |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.08 ~ 0.40 | ≤ 0.4 x DimA |
