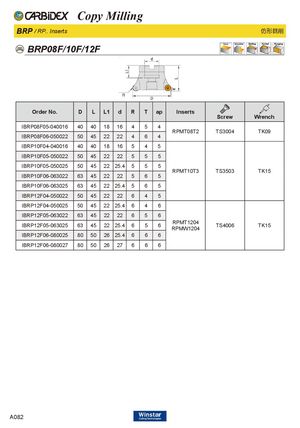

BRP / RP.. Inserts 仿形銑削
BRP08F/10F/12F
ap
| Order No. | D | L | L1 | d | R | T | ap | Inserts | Screw | Wrench |
| IBRP08F05-040016 | 40 | 40 | 18 | 16 | 4 | 5 | 4 | RPMT08T2 | TS3004 | TK09 |
| IBRP08F06-050022 | 50 | 45 | 22 | 22 | 4 | 6 | 4 | |||
| IBRP10F04-040016 | 40 | 40 | 18 | 16 | 5 | 4 | 5 | |||
| IBRP10F05-050022 | 50 | 45 | 22 | 22 | 5 | 5 | 5 | |||
| IBRP10F05-050025 | 50 | 45 | 22 | 25.4 | 5 | 5 | 5 | |||
| IBRP10F06-063022 | 63 | 45 | 22 | 22 | 5 | 6 | 5 | RPMT10T3 | TS3503 | TK15 |
| IBRP10F06-063025 | 63 | 45 | 22 | 25.4 | 5 | 6 | 5 | |||
| IBRP12F04-050022 | 50 | 45 | 22 | 22 | 6 | 4 | 5 | |||
| IBRP12F04-050025 | 50 | 45 | 22 | 25.4 | 6 | 4 | 6 | |||
| IBRP12F05-063022 | 63 | 45 | 22 | 22 | 6 | 5 | 6 | |||
| IBRP12F05-063025 | 63 | 45 | 22 | 25.4 | 6 | 5 | 6 | RPMT1204 RPMW1204 | TS4006 | TK15 |
| IBRP12F06-080025 | 80 | 50 | 26 | 25.4 | 6 | 6 | 6 | |||
| IBRP12F06-080027 | 80 | 50 | 26 | 27 | 6 | 6 | 6 |
