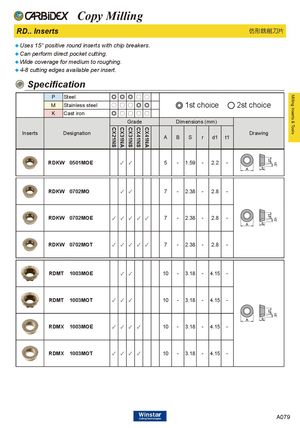

RD.. Inserts 仿形銑削刀片
- Uses 15° positive round inserts with chip breakers.
- Can perform direct pocket cutting.
- Wide coverage for medium to roughing.
- 4-8 cutting edges available per insert. Specification
| P S M S | teel tainless steel | ◎ ○ | ◎ ○ | ◎ ○ | ○ ◎ | ○ ◎ | 1st | ch | oice | 2st ch | oice | ||||
| K C | ast iron | ◎ | ○ | ○ | ○ | ○ | |||||||||
| C | C | Gra C | de C | C | Di | mensio | ns( | mm) | |||||||
| Inserts | D | esignation | X21NS | X31NA | X31NS | X41NS | X41NA | A | B | S | r | d1 | t1 | Dr | awing |
| RDKW | 0501MOE | ✓ | ✓ | 5 | - | 1.59 | - | 2.2 | - | ||||||
| RDKW | 0702MO | ✓ | ✓ | 7 | - | 2.38 | - | 2.8 | - | ||||||
| RDKW | 0702MOE | ✓ | ✓ | ✓ | ✓ | ✓ | 7 | - | 2.38 | - | 2.8 | - | |||
| RDKW | 0702MOT | ✓ | ✓ | ✓ | ✓ | ✓ | 7 | - | 2.38 | - | 2.8 | - | |||
| RDMT | 1003MOE | ✓ | ✓ | 10 | - | 3.18 | - | 4.15 | - | ||||||
| RDMT | 1003MOT | ✓ | ✓ | ✓ | 10 | - | 3.18 | - | 4.15 | - | |||||
| RDMX | 1003MOE | ✓ | ✓ | ✓ | ✓ | 10 | - | 3.18 | - | 4.15 | - | ||||
| RDMX | 1003MOT | ✓ | ✓ | ✓ | ✓ | 10 | - | 3.18 | - | 4.15 | - |
