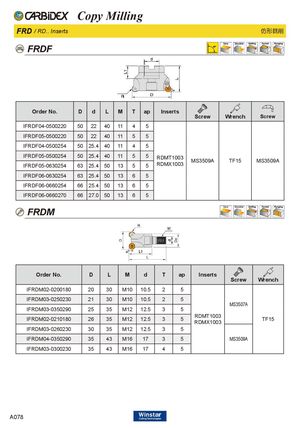

FRD / RD.. Inserts 仿形銑削
FRDF
ap
| Order No. | D | d | L | M | T | ap | Inserts | Screw | Wrench | Screw |
| IFRDF04-0500220 | 50 | 22 | 40 | 11 | 4 | 5 | ||||
| IFRDF05-0500220 | 50 | 22 | 40 | 11 | 5 | 5 | ||||
| IFRDF04-0500254 | 50 | 25.4 | 40 | 11 | 4 | 5 | ||||
| IFRDF05-0500254 | 50 | 25.4 | 40 | 11 | 5 | 5 | RDMT1003 | MS3509A | TF15 | MS3509A |
| IFRDF05-0630254 | 63 | 25.4 | 50 | 13 | 5 | 5 | RDMX1003 | |||
| IFRDF06-0630254 | 63 | 25.4 | 50 | 13 | 6 | 5 | ||||
| IFRDF06-0660254 | 66 | 25.4 | 50 | 13 | 6 | 5 | ||||
| IFRDF06-0660270 | 66 | 27.0 | 50 | 13 | 6 | 5 |
FRDM
ap
| Order No. | D | L | M | d | T | ap | Inserts | Screw | Wrench |
| IFRDM02-0200180 | 20 | 30 | M10 | 10.5 | 2 | 5 | |||
| IFRDM03-0250230 | 21 | 30 | M10 | 10.5 | 2 | 5 | MS3507A | ||
| IFRDM03-0350290 | 25 | 35 | M12 | 12.5 | 3 | 5 | |||
| IFRDM02-0210180 | 26 | 35 | M12 | 12.5 | 3 | 5 | RDMT1003 RDMX1003 | TF15 | |
| IFRDM03-0260230 | 30 | 35 | M12 | 12.5 | 3 | 5 | |||
| IFRDM04-0350290 | 35 | 43 | M16 | 17 | 3 | 5 | MS3509A | ||
| IFRDM03-0300230 | 35 | 43 | M16 | 17 | 4 | 5 |
