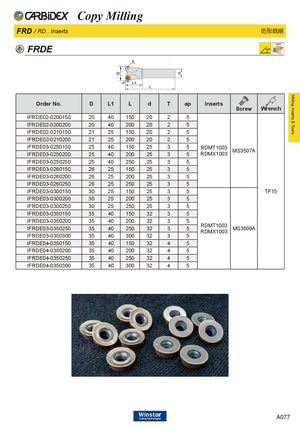

Каталог Carbidex сменные пластины 2020 - страница 79
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
FRD / RD.. Inserts 仿形銑削
FRDE
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| IFRDE02-0200150 | 20 | 40 | 150 | 20 | 2 | 5 | |||
| IFRDE02-0200200 | 20 | 40 | 200 | 20 | 2 | 5 | |||
| IFRDE02-0210150 | 21 | 25 | 150 | 20 | 2 | 5 | |||
| IFRDE02-0210200 | 21 | 25 | 200 | 20 | 2 | 5 | |||
| IFRDE03-0250150 | 25 | 40 | 150 | 25 | 3 | 5 | RDMT1003 | MS3507A | |
| IFRDE03-0250200 | 25 | 40 | 200 | 25 | 3 | 5 | RDMX1003 | ||
| IFRDE03-0250250 | 25 | 40 | 250 | 25 | 3 | 5 | |||
| IFRDE03-0260150 | 26 | 25 | 150 | 25 | 3 | 5 | |||
| IFRDE03-0260200 | 26 | 25 | 200 | 25 | 3 | 5 | |||
| IFRDE03-0260250 | 26 | 25 | 250 | 25 | 3 | 5 | |||
| IFRDE03-0300150 | 30 | 25 | 150 | 25 | 3 | 5 | TF15 | ||
| IFRDE03-0300200 | 30 | 25 | 200 | 25 | 3 | 5 | |||
| IFRDE03-0300250 | 30 | 25 | 250 | 25 | 3 | 5 | |||
| IFRDE03-0350150 | 35 | 40 | 150 | 32 | 3 | 5 | |||
| IFRDE03-0350200 | 35 | 40 | 200 | 32 | 3 | 5 | |||
| IFRDE03-0350250 | 35 | 40 | 250 | 32 | 3 | 5 | RDMT1003 RDMX1003 | MS3509A | |
| IFRDE03-0350300 | 35 | 40 | 300 | 32 | 3 | 5 | |||
| IFRDE04-0350150 | 35 | 40 | 150 | 32 | 4 | 5 | |||
| IFRDE04-0350200 | 35 | 40 | 200 | 32 | 4 | 5 | |||
| IFRDE04-0350250 | 35 | 40 | 250 | 32 | 4 | 5 | |||
| IFRDE04-0350300 | 35 | 40 | 300 | 32 | 4 | 5 |
