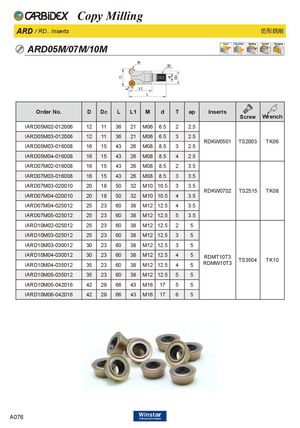

ARD05M/07M/10M
ap
| Order No. | D | Dc | L | L1 | M | d | T | ap | Inserts | Screw | Wrench |
| IARD05M02-012006 | 12 | 11 | 36 | 21 | M06 | 6.5 | 2 | 2.5 | |||
| IARD05M03-012006 | 12 | 11 | 36 | 21 | M06 | 6.5 | 3 | 2.5 | |||
| IARD05M03-016008 | 16 | 15 | 43 | 26 | M08 | 8.5 | 3 | 2.5 | RDKW0501 | TS2003 | TK06 |
| IARD05M04-016008 | 16 | 15 | 43 | 26 | M08 | 8.5 | 4 | 2.5 | |||
| IARD07M02-016008 | 16 | 15 | 43 | 26 | M08 | 8.5 | 2 | 3.5 | |||
| IARD07M03-016008 | 16 | 15 | 43 | 26 | M08 | 8.5 | 3 | 3.5 | |||
| IARD07M03-020010 | 20 | 18 | 50 | 32 | M10 | 10.5 | 3 | 3.5 | |||
| IARD07M04-020010 | 20 | 18 | 50 | 32 | M10 | 10.5 | 4 | 3.5 | RDKW0702 | TS2515 | TK08 |
| IARD07M04-025012 | 25 | 23 | 60 | 38 | M12 | 12.5 | 4 | 3.5 | |||
| IARD07M05-025012 | 25 | 23 | 60 | 38 | M12 | 12.5 | 5 | 3.5 | |||
| IARD10M02-025012 | 25 | 23 | 60 | 38 | M12 | 12.5 | 2 | 5 | |||
| IARD10M03-025012 | 25 | 23 | 60 | 38 | M12 | 12.5 | 3 | 5 | |||
| IARD10M03-030012 | 30 | 23 | 60 | 38 | M12 | 12.5 | 3 | 5 | |||
| IARD10M04-030012 | 30 | 23 | 60 | 38 | M12 | 12.5 | 4 | 5 | RDMT10T3 | ||
| IARD10M04-035012 | 35 | 23 | 60 | 38 | M12 | 12.5 | 4 | 5 | RDMW10T3 | TS3504 | TK10 |
| IARD10M05-035012 | 35 | 23 | 60 | 38 | M12 | 12.5 | 5 | 5 | |||
| IARD10M05-042016 | 42 | 29 | 66 | 43 | M16 | 17 | 5 | 5 | |||
| IARD10M06-042016 | 42 | 29 | 66 | 43 | M16 | 17 | 6 | 5 |
