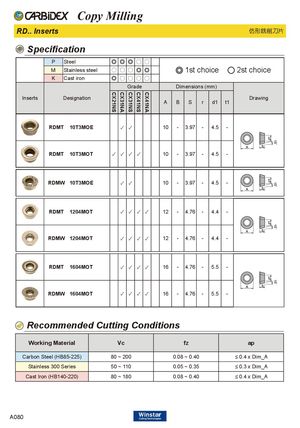

RD.. Inserts 仿形銑削刀片
Specification
| P S | teel | ◎ | ◎ | ◎ | ○ | ○ | |||||||||
| M S | tainless steel | ○ | ○ | ○ | ◎ | ◎ | 1st | ch | oice | 2st ch | oice | ||||
| K C | ast iron | ◎ | ○ | ○ | ○ | ○ | |||||||||
| CX | CX | Gra CX | de CX | CX | Di | mensio | ns( | mm) | |||||||
| Inserts | D | esignation | 21NS | 31NA | 31NS | 41NS | 41NA | A | B | S | r | d1 | t1 | Dr | awing |
| RDMT | 10T3MOE | ✓ | ✓ | 10 | - | 3.97 | - | 4.5 | - | ||||||
| RDMT | 10T3MOT | ✓ | ✓ | ✓ | ✓ | 10 | - | 3.97 | - | 4.5 | - | ||||
| RDMW | 10T3MOE | ✓ | ✓ | 10 | - | 3.97 | - | 4.5 | - | ||||||
| RDMT | 1204MOT | ✓ | ✓ | ✓ | ✓ | 12 | - | 4.76 | - | 4.4 | - | ||||
| RDMW | 1204MOT | ✓ | ✓ | ✓ | ✓ | 12 | - | 4.76 | - | 4.4 | - | ||||
| RDMT | 1604MOT | ✓ | ✓ | ✓ | ✓ | 16 | - | 4.76 | - | 5.5 | - | ||||
| RDMW | 1604MOT | ✓ | ✓ | ✓ | ✓ | 16 | - | 4.76 | - | 5.5 | - |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.08 ~ 0.40 | ≤ 0.4 x DimA |
| Stainless 300 Series | 50 ~ 110 | 0.05 ~ 0.35 | ≤ 0.3 x DimA |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.08 ~ 0.40 | ≤ 0.4 x DimA |
