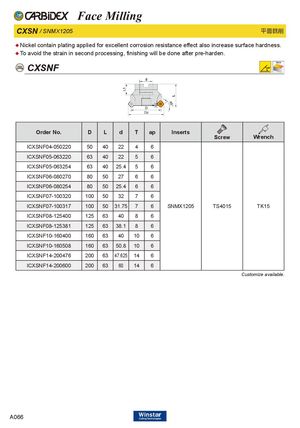

CXSN / SNMX1205 平面銑削
♦ Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦To avoid the strain in second processing, finishing will be done after pre-harden.
CXSNF
ap
| Order No. | D | L | d | T | ap | Inserts | Screw | Wrench |
| ICXSNF04-050220 | 50 | 40 | 22 | 4 | 6 | |||
| ICXSNF05-063220 | 63 | 40 | 22 | 5 | 6 | |||
| ICXSNF05-063254 | 63 | 40 | 25.4 | 5 | 6 | |||
| ICXSNF06-080270 | 80 | 50 | 27 | 6 | 6 | |||
| ICXSNF06-080254 | 80 | 50 | 25.4 | 6 | 6 | |||
| ICXSNF07-100320 | 100 | 50 | 32 | 7 | 6 | |||
| ICXSNF07-100317 | 100 | 50 | 31.75 | 7 | 6 | SNMX1205 | TS4015 | TK15 |
| ICXSNF08-125400 | 125 | 63 | 40 | 8 | 6 | |||
| ICXSNF08-125381 | 125 | 63 | 38.1 | 8 | 6 | |||
| ICXSNF10-160400 | 160 | 63 | 40 | 10 | 6 | |||
| ICXSNF10-160508 | 160 | 63 | 50.8 | 10 | 6 | |||
| ICXSNF14-200476 | 200 | 63 | 47.625 | 14 | 6 | |||
| ICXSNF14-200600 | 200 | 63 | 60 | 14 | 6 |
Customize available.
