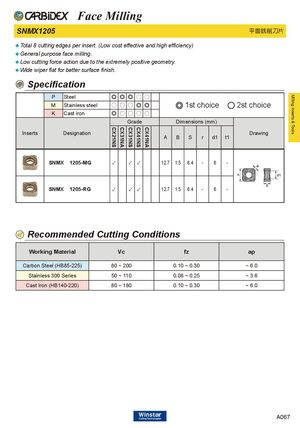

SNMX1205 平面銑削刀片
♦Total 8 cutting edges per insert. (Low cost effective and high efficiency)
♦General purpose face milling. ♦Low cutting force action due to the extremely positive geometry. ♦Wide wiper flat for better surface finish.
Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | ||||||||
| M | Stainless steel | ○ | ○ | ○ | ◎ | ◎ | 1st | cho | ice | 2st choice | ||||
| K | Cast iron | ◎ | ○ | ○ | ○ | ○ | ||||||||
| Gra | de | Dim | ensio | ns( | mm) | |||||||||
| Inserts | Designation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | A | B | S | r | d1 | t1 | Drawing | |
| SNMX | 1205-MG | ✓ | ✓ | ✓ | 12.7 | 1.5 | 6.4 | - | 6 | - | ||||
| SNMX | 1205-RG | ✓ | ✓ | ✓ | 12.7 | 1.5 | 6.4 | - | 6 | - |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.10 ~ 0.30 | ~ 6.0 |
| Stainless 300 Series | 50 ~ 110 | 0.08 ~ 0.25 | ~ 3.6 |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.10 ~ 0.30 | ~ 6.0 |
