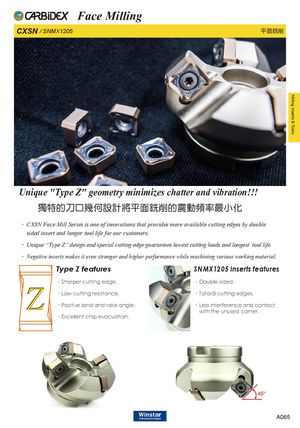

CXSN / SNMX1205 平面銑削

Unique "Type Z" geometry minimizes chatter and vibration!!!

獨特的刀口幾何設計將平面銑削的震動頻率最小化

．CXSN Face Mill Series is one of innovations that provides more available cutting edges by double sided insert and longer tool life for our customers. ．Unique “Type Z” design and special cutting edge guarantees lowest cutting loads and longest tool life. ．Negative inserts makes it even stronger and higher performance while machining various working material. Type Z features SNMX1205 Inserts features

Z ．Sharper cutting edge. ．Double sided.

．Low cutting resistance. ．Total 8 cutting edges. ．Positive land and rake angle. ．Less interference and contact with the unused corner. ．Excellent chip evacuation.

45°
