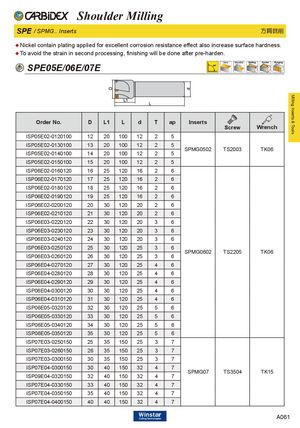

SPE / SPMG.. Inserts 方肩銑削
♦Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness. ♦To avoid the strain in second processing, finishing will be done after pre-harden.
SPE05E/06E/07E
| D | d |
| L1 L |
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| ISP05E02-0120100 | 12 | 20 | 100 | 12 | 2 | 5 | |||
| ISP05E02-0130100 | 13 | 20 | 100 | 12 | 2 | 5 | SPMG0502 | TS2003 | TK06 |
| ISP05E02-0140100 | 14 | 20 | 100 | 12 | 2 | 5 | |||
| ISP05E02-0150100 | 15 | 20 | 100 | 12 | 2 | 5 | |||
| ISP06E02-0160120 | 16 | 25 | 120 | 16 | 2 | 6 | |||
| ISP06E02-0170120 | 17 | 25 | 120 | 16 | 2 | 6 | |||
| ISP06E02-0180120 | 18 | 25 | 120 | 16 | 2 | 6 | |||
| ISP06E02-0190120 | 19 | 25 | 120 | 16 | 2 | 6 | |||
| ISP06E02-0200120 | 20 | 30 | 120 | 20 | 2 | 6 | |||
| ISP06E02-0210120 | 21 | 30 | 120 | 20 | 2 | 6 | |||
| ISP06E03-0220120 | 22 | 30 | 120 | 20 | 3 | 6 | |||
| ISP06E03-0230120 | 23 | 30 | 120 | 20 | 3 | 6 | |||
| ISP06E03-0240120 | 24 | 30 | 120 | 20 | 3 | 6 | |||
| ISP06E03-0250120 | 25 | 30 | 120 | 25 | 3 | 6 | SPMG0602 | TS2205 | TK06 |
| ISP06E03-0260120 | 26 | 30 | 120 | 25 | 3 | 6 | |||
| ISP06E04-0270120 | 27 | 30 | 120 | 25 | 4 | 6 | |||
| ISP06E04-0280120 | 28 | 30 | 120 | 25 | 4 | 6 | |||
| ISP06E04-0290120 | 29 | 30 | 120 | 25 | 4 | 6 | |||
| ISP06E04-0300120 | 30 | 30 | 120 | 25 | 4 | 6 | |||
| ISP06E04-0310120 | 31 | 30 | 120 | 25 | 4 | 6 | |||
| ISP06E05-0320120 | 32 | 30 | 120 | 25 | 5 | 6 | |||
| ISP06E05-0330120 | 33 | 30 | 120 | 25 | 5 | 6 | |||
| ISP06E05-0340120 | 34 | 30 | 120 | 25 | 5 | 6 | |||
| ISP06E05-0350120 | 35 | 30 | 120 | 25 | 5 | 6 | |||
| ISP07E03-0250150 | 25 | 35 | 150 | 25 | 3 | 7 | |||
| ISP07E03-0260150 | 26 | 35 | 150 | 25 | 3 | 7 | |||
| ISP07E03-0300150 | 30 | 35 | 150 | 25 | 3 | 7 | |||
| ISP07E04-0300150 | 30 | 40 | 150 | 32 | 4 | 7 | |||
| ISP09E04-0320150 | 32 | 40 | 150 | 32 | 4 | 7 | SPMG07 | TS3504 | TK15 |
| ISP07E04-0330150 | 33 | 40 | 150 | 32 | 4 | 7 | |||
| ISP07E04-0350150 | 35 | 40 | 150 | 32 | 4 | 7 | |||
| ISP07E04-0400150 | 40 | 40 | 150 | 32 | 4 | 7 |
