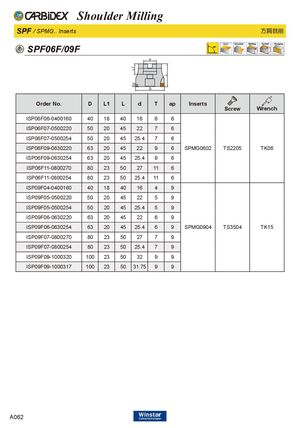

SPF / SPMG.. Inserts 方肩銑削
SPF06F/09F
d
ap D
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| ISP06F06-0400160 | 40 | 18 | 40 | 16 | 6 | 6 | |||
| ISP06F07-0500220 | 50 | 20 | 45 | 22 | 7 | 6 | |||
| ISP06F07-0500254 | 50 | 20 | 45 | 25.4 | 7 | 6 | |||
| ISP06F09-0630220 | 63 | 20 | 45 | 22 | 9 | 6 | SPMG0602 | TS2205 | TK06 |
| ISP06F09-0630254 | 63 | 20 | 45 | 25.4 | 9 | 6 | |||
| ISP06F11-0800270 | 80 | 23 | 50 | 27 | 11 | 6 | |||
| ISP06F11-0800254 | 80 | 23 | 50 | 25.4 | 11 | 6 | |||
| ISP09F04-0400160 | 40 | 18 | 40 | 16 | 4 | 9 | |||
| ISP09F05-0500220 | 50 | 20 | 45 | 22 | 5 | 9 | |||
| ISP09F05-0500254 | 50 | 20 | 45 | 25.4 | 5 | 9 | |||
| ISP09F06-0630220 | 63 | 20 | 45 | 22 | 6 | 9 | |||
| ISP09F06-0630254 | 63 | 20 | 45 | 25.4 | 6 | 9 | SPMG0904 | TS3504 | TK15 |
| ISP09F07-0800270 | 80 | 23 | 50 | 27 | 7 | 9 | |||
| ISP09F07-0800254 | 80 | 23 | 50 | 25.4 | 7 | 9 | |||
| ISP09F09-1000320 | 100 | 23 | 50 | 32 | 9 | 9 | |||
| ISP09F09-1000317 | 100 | 23 | 50 | 31.75 | 9 | 9 |
