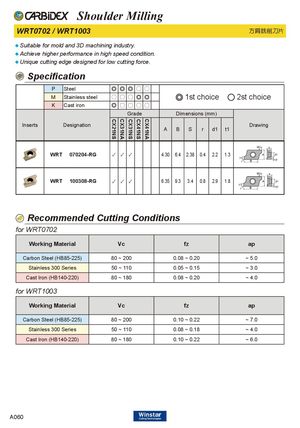

WRT0702 / WRT1003 方肩銑削刀片
- Suitable for mold and 3D machining industry.
- Achieve higher performance in high speed condition.
- Unique cutting edge designed for low cutting force. Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ||||||||||
| Inserts | M K | Stainless steel Cast iron Designation | ○ ◎ CX21NS | ○ ○ CX31NA | ○ ○ Gr CX31NS | ad | e CX41NS | ◎ ○ CX41NA | A | Dim B | 1st ensio S | cho ns( r | ice mm) d1 | t1 | 2st choice Drawing |
| WRT | 070204-RG | ✓ | ✓ | ✓ | 4.30 | 6.4 | 2.38 | 0.4 | 2.2 | 1.3 | s d1 15° r t1 90° | ||||
| WRT | 100308-RG | ✓ | ✓ | ✓ | 6.35 | 9.3 | 3.4 | 0.8 | 2.9 | 1.8 | s d1 15° r t1 90° |
Recommended Cutting Conditions
for WRT0702
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.08 ~ 0.20 | ~ 5.0 |
| Stainless 300 Series | 50 ~ 110 | 0.05 ~ 0.15 | ~ 3.0 |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.08 ~ 0.20 | ~ 4.0 |
for WRT1003
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.10 ~ 0.22 | ~ 7.0 |
| Stainless 300 Series | 50 ~ 110 | 0.08 ~ 0.18 | ~ 4.0 |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.10 ~ 0.22 | ~ 6.0 |
