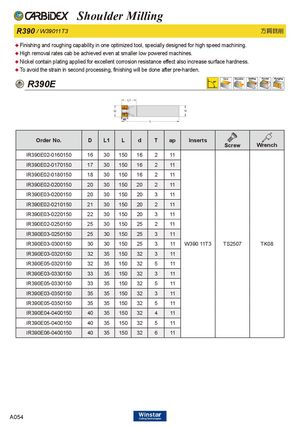

Каталог Carbidex сменные пластины 2020 - страница 56
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
- Finishing and roughing capability in one optimized tool, specially designed for high speed machining.
- High removal rates cab be achieved even at smaller low powered machines.
- Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
- To avoid the strain in second processing, finishing will be done after pre-harden. R390E
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| IR390E02-0160150 | 16 | 30 | 150 | 16 | 2 | 11 | |||
| IR390E02-0170150 | 17 | 30 | 150 | 16 | 2 | 11 | |||
| IR390E02-0180150 | 18 | 30 | 150 | 16 | 2 | 11 | |||
| IR390E02-0200150 | 20 | 30 | 150 | 20 | 2 | 11 | |||
| IR390E03-0200150 | 20 | 30 | 150 | 20 | 3 | 11 | |||
| IR390E02-0210150 | 21 | 30 | 150 | 20 | 2 | 11 | |||
| IR390E03-0220150 | 22 | 30 | 150 | 20 | 3 | 11 | |||
| IR390E02-0250150 | 25 | 30 | 150 | 25 | 2 | 11 | |||
| IR390E03-0250150 | 25 | 30 | 150 | 25 | 3 | 11 | |||
| IR390E03-0300150 | 30 | 30 | 150 | 25 | 3 | 11 | W390 11T3 | TS2507 | TK08 |
| IR390E03-0320150 | 32 | 35 | 150 | 32 | 3 | 11 | |||
| IR390E05-0320150 | 32 | 35 | 150 | 32 | 5 | 11 | |||
| IR390E03-0330150 | 33 | 35 | 150 | 32 | 3 | 11 | |||
| IR390E05-0330150 | 33 | 35 | 150 | 32 | 5 | 11 | |||
| IR390E03-0350150 | 35 | 35 | 150 | 32 | 3 | 11 | |||
| IR390E05-0350150 | 35 | 35 | 150 | 32 | 5 | 11 | |||
| IR390E04-0400150 | 40 | 35 | 150 | 32 | 4 | 11 | |||
| IR390E05-0400150 | 40 | 35 | 150 | 32 | 5 | 11 | |||
| IR390E06-0400150 | 40 | 35 | 150 | 32 | 6 | 11 |
