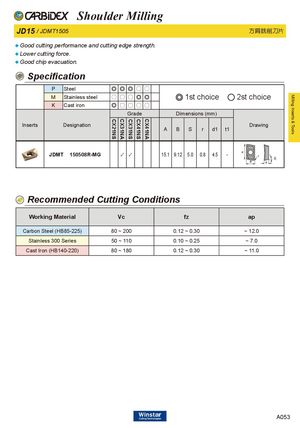

JD15 / JDMT1505 方肩銑削刀片
- Good cutting performance and cutting edge strength.
- Lower cutting force.
- Good chip evacuation. Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | ||||||||
| M | Stainless steel | ○ | ○ | ○ | ◎ | ◎ | 1st | cho | ice | 2st choice | ||||
| K | Cast iron | ◎ | ○ | ○ | ○ | ○ | ||||||||
| Gr | a | de | Dim | ensi | ons( | mm) | ||||||||
| Inserts | Designation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | A B | S | r | d1 | t1 | Drawing | ||
| JDM | T 150508R-MG | ✓ | ✓ | 15.1 9.12 | 5.0 | 0.8 | 4.5 | - |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.12 ~ 0.30 | ~ 12.0 |
| Stainless 300 Series | 50 ~ 110 | 0.10 ~ 0.25 | ~ 7.0 |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.12 ~ 0.30 | ~ 11.0 |
