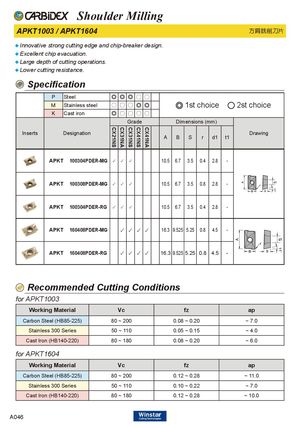

APKT1003 / APKT1604 方肩銑削刀片
- Innovative strong cutting edge and chip-breaker design.
- Excellent chip evacuation.
- Large depth of cutting operations.
- Lower cutting resistance. Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | ||||||||
| M | Stainless steel | ○ | ○ | ○ | ◎ | ◎ | 1st | cho | ice | 2st choice | ||||
| Inserts | K | Cast iron Designation | ◎ CX21NS | ○ CX31NA | ○ Gra CX31NS | ○ de CX41NS | ○ CX41NA | A | Dim B | ensio S | ns( r | mm) d1 | t1 | Drawing |
| APKT | 100304PDER-MG | ✓ | ✓ | ✓ | 10.5 | 6.7 | 3.5 | 0.4 | 2.8 | - | ||||
| APKT | 100308PDER-MG | ✓ | ✓ | ✓ | 10.5 | 6.7 | 3.5 | 0.8 | 2.8 | - | ||||
| APKT | 100304PDER-RG | ✓ | ✓ | ✓ | 10.5 | 6.7 | 3.5 | 0.4 | 2.8 | - | ||||
| APKT | 160408PDER-MG | ✓ | ✓ | ✓ | ✓ | 16.3 | 9.525 | 5.25 | 0.8 | 4.5 | - | |||
| APKT | 160408PDER-RG | ✓ | ✓ | ✓ | ✓ | 16.3 | 9.525 | 5.25 | 0.8 | 4.5 | - |
Recommended Cutting Conditions
for APKT1003
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.08 ~ 0.20 | ~ 7.0 |
| Stainless 300 Series | 50 ~ 110 | 0.05 ~ 0.15 | ~ 4.0 |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.08 ~ 0.20 | ~ 6.0 |
| Working Material for APKT1604 | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.12 ~ 0.28 | ~ 11.0 |
| Stainless 300 Series | 50 ~ 110 | 0.10 ~ 0.22 | ~ 7.0 |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.12 ~ 0.28 | ~ 10.0 |
