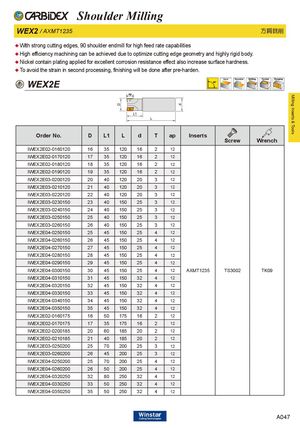

- With strong cutting edges, 90 shoulder endmill for high feed rate capabilities
- High efficiency machining can be achieved due to optimize cutting edge geometry and highly rigid body.
- Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
- To avoid the strain in second processing, finishing will be done after pre-harden. WEX2E
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| IWEX2E02-0160120 | 16 | 35 | 120 | 16 | 2 | 12 | |||
| IWEX2E02-0170120 | 17 | 35 | 120 | 16 | 2 | 12 | |||
| IWEX2E02-0180120 | 18 | 35 | 120 | 16 | 2 | 12 | |||
| IWEX2E02-0190120 | 19 | 35 | 120 | 16 | 2 | 12 | |||
| IWEX2E03-0200120 | 20 | 40 | 120 | 20 | 3 | 12 | |||
| IWEX2E03-0210120 | 21 | 40 | 120 | 20 | 3 | 12 | |||
| IWEX2E03-0220120 | 22 | 40 | 120 | 20 | 3 | 12 | |||
| IWEX2E03-0230150 | 23 | 40 | 150 | 25 | 3 | 12 | |||
| IWEX2E03-0240150 | 24 | 40 | 150 | 25 | 3 | 12 | |||
| IWEX2E03-0250150 | 25 | 40 | 150 | 25 | 3 | 12 | |||
| IWEX2E03-0260150 | 26 | 40 | 150 | 25 | 3 | 12 | |||
| IWEX2E04-0250150 | 25 | 45 | 150 | 25 | 4 | 12 | |||
| IWEX2E04-0260150 | 26 | 45 | 150 | 25 | 4 | 12 | |||
| IWEX2E04-0270150 | 27 | 45 | 150 | 25 | 4 | 12 | |||
| IWEX2E04-0280150 | 28 | 45 | 150 | 25 | 4 | 12 | |||
| IWEX2E04-0290150 | 29 | 45 | 150 | 25 | 4 | 12 | |||
| IWEX2E04-0300150 | 30 | 45 | 150 | 25 | 4 | 12 | AXMT1235 | TS3002 | TK09 |
| IWEX2E04-0310150 | 31 | 45 | 150 | 32 | 4 | 12 | |||
| IWEX2E04-0320150 | 32 | 45 | 150 | 32 | 4 | 12 | |||
| IWEX2E04-0330150 | 33 | 45 | 150 | 32 | 4 | 12 | |||
| IWEX2E04-0340150 | 34 | 45 | 150 | 32 | 4 | 12 | |||
| IWEX2E04-0350150 | 35 | 45 | 150 | 32 | 4 | 12 | |||
| IWEX2E02-0160175 | 16 | 50 | 175 | 16 | 2 | 12 | |||
| IWEX2E02-0170175 | 17 | 35 | 175 | 16 | 2 | 12 | |||
| IWEX2E02-0200185 | 20 | 60 | 185 | 20 | 2 | 12 | |||
| IWEX2E02-0210185 | 21 | 40 | 185 | 20 | 2 | 12 | |||
| IWEX2E03-0250200 | 25 | 70 | 200 | 25 | 3 | 12 | |||
| IWEX2E03-0260200 | 26 | 45 | 200 | 25 | 3 | 12 | |||
| IWEX2E04-0250200 | 25 | 70 | 200 | 25 | 4 | 12 | |||
| IWEX2E04-0260200 | 26 | 50 | 200 | 25 | 4 | 12 | |||
| IWEX2E04-0320250 | 32 | 80 | 250 | 32 | 4 | 12 | |||
| IWEX2E04-0330250 | 33 | 50 | 250 | 32 | 4 | 12 | |||
| IWEX2E04-0350250 | 35 | 50 | 250 | 32 | 4 | 12 |
