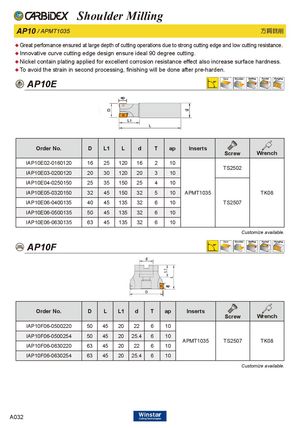

AP10 / APMT1035 方肩銑削
- Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
- Innovative curve cutting edge design ensure ideal 90 degree cutting.
- Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
- To avoid the strain in second processing, finishing will be done after pre-harden. AP10E
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| IAP10E02-0160120 | 16 | 25 | 120 | 16 | 2 | 10 | TS2502 | ||
| IAP10E03-0200120 | 20 | 30 | 120 | 20 | 3 | 10 | |||
| IAP10E04-0250150 | 25 | 35 | 150 | 25 | 4 | 10 | |||
| IAP10E05-0320150 | 32 | 45 | 150 | 32 | 5 | 10 | APMT1035 | TK08 | |
| IAP10E06-0400135 | 40 | 45 | 135 | 32 | 6 | 10 | TS2507 | ||
| IAP10E06-0500135 | 50 | 45 | 135 | 32 | 6 | 10 | |||
| IAP10E06-0630135 | 63 | 45 | 135 | 32 | 6 | 10 |
Customize available.
AP10F
ap
| Order No. | D | L | L1 | d | T | ap | Inserts | Screw | Wrench |
| IAP10F06-0500220 | 50 | 45 | 20 | 22 | 6 | 10 | |||
| IAP10F06-0500254 | 50 | 45 | 20 | 25.4 | 6 | 10 | APMT1035 | TS2507 | TK08 |
| IAP10F06-0630220 | 63 | 45 | 20 | 22 | 6 | 10 | |||
| IAP10F06-0630254 | 63 | 45 | 20 | 25.4 | 6 | 10 |
Customize available.
