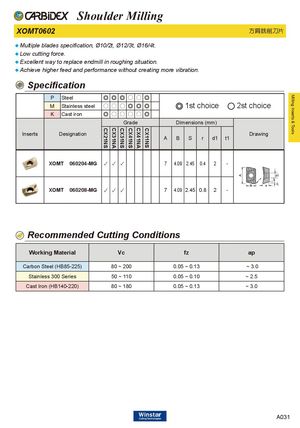

XOMT0602 方肩銑削刀片
- Multiple blades specification, Ø10/2t, Ø12/3t, Ø16/4t.
- Low cutting force.
- Excellent way to replace endmill in roughing situation.
- Achieve higher feed and performance without creating more vibration. Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | ◎ | ||||||||
| M | Stainless steel | ○ | ○ | ○ | ◎ | ◎ | ◎ | 1st | cho | ice | 2st choice | ||||
| K | Cast iron | ◎ | ○ | ○ | ○ | ○ | ◎ | ||||||||
| G | ra | de | Dim | ensio | ns( | mm) | |||||||||
| Inserts | Designation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | CX11NS | A | B | S | r | d1 | t1 | Drawing | |
| XOM | T 060204-MG | ✓ | ✓ | ✓ | 7 | 4.09 | 2.45 | 0.4 | 2 | - | |||||
| XOM | T 060208-MG | ✓ | ✓ | ✓ | 7 | 4.09 | 2.45 | 0.8 | 2 | - |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.05 ~ 0.13 | ~ 3.0 |
| Stainless 300 Series | 50 ~ 110 | 0.05 ~ 0.10 | ~ 2.5 |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.05 ~ 0.13 | ~ 3.0 |
