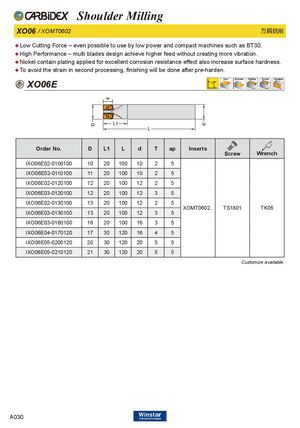

XO06 / XOMT0602 方肩銑削
- Low Cutting Force – even possible to use by low power and compact machines such as BT30.
- High Performance – multi blades design achieve higher feed without creating more vibration.
- Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
- To avoid the strain in second processing, finishing will be done after pre-harden. XO06E
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| IXO06E02-0100100 | 10 | 20 | 100 | 10 | 2 | 5 | |||
| IXO06E02-0110100 | 11 | 20 | 100 | 10 | 2 | 5 | |||
| IXO06E02-0120100 | 12 | 20 | 100 | 12 | 2 | 5 | |||
| IXO06E03-0120100 | 12 | 20 | 100 | 12 | 3 | 5 | |||
| IXO06E02-0130100 | 13 | 20 | 100 | 12 | 2 | 5 | XOMT0602 | TS1801 | TK06 |
| IXO06E03-0130100 | 13 | 20 | 100 | 12 | 3 | 5 | .. | ||
| IXO06E03-0160100 | 16 | 20 | 100 | 16 | 3 | 5 | |||
| IXO06E04-0170120 | 17 | 30 | 120 | 16 | 4 | 5 | |||
| IXO06E05-0200120 | 20 | 30 | 120 | 20 | 5 | 5 | |||
| IXO06E05-0210120 | 21 | 30 | 120 | 20 | 5 | 5 |
Customize available.
