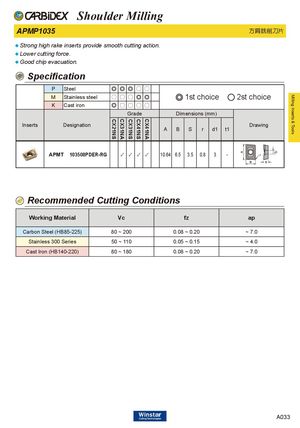

APMP1035 方肩銑削刀片
- Strong high rake inserts provide smooth cutting action.
- Lower cutting force.
- Good chip evacuation. Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | |||||||||
| M | Stainless steel | ○ | ○ | ○ | ◎ | ◎ | 1st | cho | ice | 2st choice | |||||
| K | Cast iron | ◎ | ○ | ○ | ○ | ○ | |||||||||
| Gr | a | de | Dim | ensi | ons( | mm) | |||||||||
| Inserts | Designation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | A | B | S | r | d1 | t1 | Drawing | ||
| APM | T 103508PDER-RG | ✓ | ✓ | ✓ | ✓ | 10.64 | 6.5 | 3.5 | 0.8 | 3 | - |
Recommended Cutting Conditions
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 200 | 0.08 ~ 0.20 | ~ 7.0 |
| Stainless 300 Series | 50 ~ 110 | 0.05 ~ 0.15 | ~ 4.0 |
| Cast Iron (HB140-220) | 80 ~ 180 | 0.08 ~ 0.20 | ~ 7.0 |
