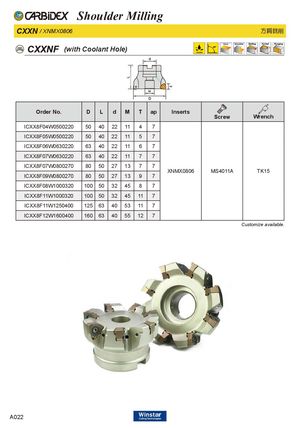

CXXNF (with Coolant Hole)
ap
| Order No. | D | L | d | M | T | ap | Inserts | Screw | Wrench |
| ICXX8F04W0500220 | 50 | 40 | 22 | 11 | 4 | 7 | |||
| ICXX8F05W0500220 | 50 | 40 | 22 | 11 | 5 | 7 | |||
| ICXX8F06W0630220 | 63 | 40 | 22 | 11 | 6 | 7 | |||
| ICXX8F07W0630220 | 63 | 40 | 22 | 11 | 7 | 7 | |||
| ICXX8F07W0800270 | 80 | 50 | 27 | 13 | 7 | 7 | XNMX0806 | MS4011A | TK15 |
| ICXX8F09W0800270 | 80 | 50 | 27 | 13 | 9 | 7 | |||
| ICXX8F08W1000320 | 100 | 50 | 32 | 45 | 8 | 7 | |||
| ICXX8F11W1000320 | 100 | 50 | 32 | 45 | 11 | 7 | |||
| ICXX8F11W1250400 | 125 | 63 | 40 | 53 | 11 | 7 | |||
| ICXX8F12W1600400 | 160 | 63 | 40 | 55 | 12 | 7 |
Customize available.
