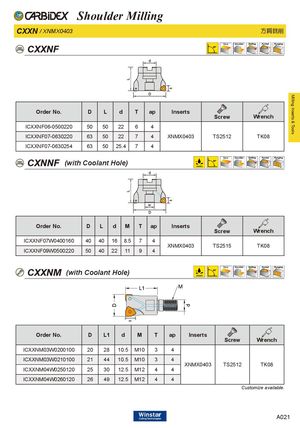

CXXNF
ap
| Order No. | D | L | d | T | ap | Inserts | Screw | Wrench |
| ICXXNF06-0500220 | 50 | 50 | 22 | 6 | 4 | |||
| ICXXNF07-0630220 | 63 | 50 | 22 | 7 | 4 | XNMX0403 | TS2512 | TK08 |
| ICXXNF07-0630254 | 63 | 50 | 25.4 | 7 | 4 |
CXNNF (with Coolant Hole)
ap
| Order No. | D | L | d | M | T | ap | Inserts | Screw | Wrench |
| ICXXNF07W0400160 ICXXNF09W0500220 | 40 50 | 40 40 | 16 22 | 8.5 11 | 7 9 | 4 4 | XNMX0403 | TS2515 | TK08 |
CXXNM (with Coolant Hole)
L1 M
ap
| Order No. | D | L1 | d | M | T | ap | Inserts | Screw | Wrench |
| ICXXNM03W0200100 | 20 | 28 | 10.5 | M10 | 3 | 4 | |||
| ICXXNM03W0210100 | 21 | 44 | 10.5 | M10 | 3 | 4 | XNMX0403 | TS2512 | TK08 |
| ICXXNM04W0250120 | 25 | 30 | 12.5 | M12 | 4 | 4 | |||
| ICXXNM04W0260120 | 26 | 49 | 12.5 | M12 | 4 | 4 |
Customize available.
