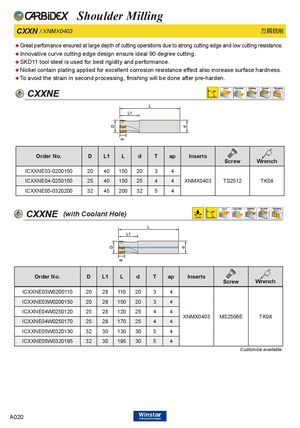

- Great perfomance ensured at large depth of cutting operations due to strong cutting edge and low cutting resistance.
♦Innovative curve cutting edge design ensure ideal 90 degree cutting. ♦SKD11 tool steel is used for best rigidity and performance.
- Nickel contain plating applied for excellent corrosion resistance effect also increase surface hardness.
♦To avoid the strain in second processing, finishing will be done after pre-harden.
CXXNE
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| ICXXNE03-0200150 | 20 | 40 | 150 | 20 | 3 | 4 | |||
| ICXXNE04-0250150 | 25 | 40 | 150 | 25 | 4 | 4 | XNMX0403 | TS2512 | TK08 |
| ICXXNE05-0320200 | 32 | 45 | 200 | 32 | 5 | 4 |
CXXNE (with Coolant Hole)
ap
| Order No. | D | L1 | L | d | T | ap | Inserts | Screw | Wrench |
| ICXXNE03W0200110 | 20 | 28 | 110 | 20 | 3 | 4 | |||
| ICXXNE03W0200150 | 20 | 28 | 150 | 20 | 3 | 4 | |||
| ICXXNE04W0250120 | 25 | 28 | 120 | 25 | 4 | 4 | XNMX0403 | MS2506E | TK08 |
| ICXXNE04W0250170 | 25 | 28 | 170 | 25 | 4 | 4 | |||
| ICXXNE05W0320130 | 32 | 30 | 130 | 30 | 5 | 4 | |||
| ICXXNE05W0320195 | 32 | 30 | 195 | 30 | 5 | 4 |
Customize available.
