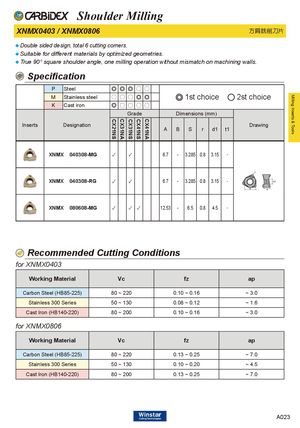

XNMX0403 / XNMX0806 方肩銑削刀片
♦Double sided design, total 6 cutting corners. ♦Suitable for different materials by optimized geometries. ♦True 90° square shoulder angle, one milling operation without mismatch on machining walls.
Specification
| P | Steel | ◎ | ◎ | ◎ | ○ | ○ | | | | | | | |
| M | Stainless steel | ○ | ○ | ○ | ◎ | ◎ | | | 1st | cho | ice | | 2st choice |
| K | Cast iron | ◎ | ○ | ○ | ○ | ○ | | | | | | | |
| | | | | Gra | de | | | Dim | ensio | ns( | mm) | | |
| Inserts | | Designation | CX21NS | CX31NA | CX31NS | CX41NS | CX41NA | A | B | S | r | d1 | t1 | Drawing |
| XNMX | 040308-MG | ✓ | | ✓ | | | 6.7 | - | 3.285 | 0.8 | 3.15 | - | |
| XNMX | 040308-RG | ✓ | | ✓ | | | 6.7 | - | 3.285 | 0.8 | 3.15 | - | s r d1 |
| XNMX | 080608-MG | ✓ | | ✓ | ✓ | | 12.53 | - | 6.5 | 0.8 | 4.5 | - | |
Recommended Cutting Conditions
for XNMX0403
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 220 | 0.10 ~ 0.16 | ~ 3.0 |
| Stainless 300 Series | 50 ~ 130 | 0.08 ~ 0.12 | ~ 1.6 |
| Cast Iron (HB140-220) | 80 ~ 200 | 0.10 ~ 0.16 | ~ 3.0 |
for XNMX0806
| Working Material | Vc | fz | ap |
| Carbon Steel (HB85-225) | 80 ~ 220 | 0.13 ~ 0.25 | ~ 7.0 |
| Stainless 300 Series | 50 ~ 130 | 0.10 ~ 0.20 | ~ 4.5 |
| Cast Iron (HB140-220) | 80 ~ 200 | 0.13 ~ 0.25 | ~ 7.0 |
