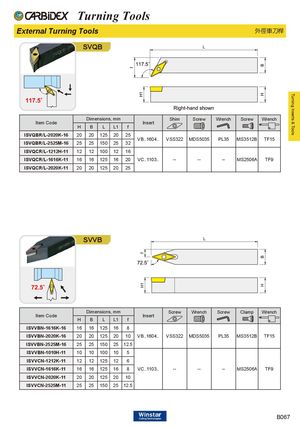

SVQB
| Item Code | Dime | nsions | , mm | Insert | Shim | Screw | Wrench | Screw | Wrench | ||
| H | B | L | L1 | f | |||||||
| ISVQBR/L-2020K-16 | 20 | 20 | 125 | 20 | 25 | VB1604 | VSS322 | MDS03 | PL3 | MS312B | TF1 |
| ISVQBR/L-2525M-16 | 25 | 25 | 150 | 25 | 32 | .... | 55 | 5 | 5 | 5 | |
| ISVQCR/L-1212H-11 | 12 | 12 | 100 | 12 | 16 | ||||||
| ISVQCR/L-1616K-11 | 16 | 16 | 125 | 16 | 20 | VC..1103.. | -- | -- | -- | MS2506A | TF9 |
| ISVQCR/L-2020K-11 | 20 | 20 | 125 | 20 | 25 |
SVVB
| Dime | nsions | , mm | Screw | Wrench | Screw | Clamp | Wrench | ||||
| Item Code | Insert | ||||||||||
| H | B | L | L1 | f | |||||||
| ISVVBN-1616K-16 | 16 | 16 | 125 | 16 | 8 | ||||||
| ISVVBN-2020K-16 | 20 | 20 | 125 | 20 | 10 | VB..1604.. | VSS322 | MDS5035 | PL35 | MS3512B | TF15 |
| ISVVBN-2525M-16 | 25 | 25 | 150 | 25 | 12.5 | ||||||
| ISVVBN-1010H-11 | 10 | 10 | 100 | 10 | 5 | ||||||
| ISVVCN-1212K-11 | 12 | 12 | 125 | 12 | 6 | ||||||
| ISVVCN-1616K-11 | 16 | 16 | 125 | 16 | 8 | VC..1103.. | -- | -- | -- | MS2506A | TF9 |
| ISVVCN-2020K-11 | 20 | 20 | 125 | 20 | 10 | ||||||
| ISVVCN-2525M-11 | 25 | 25 | 150 | 25 | 12.5 |
