Additional information

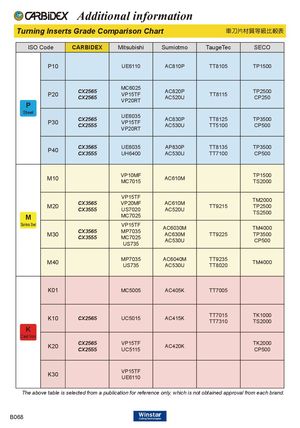

| Turning Inser | ts Grade Co | mparison Ch | art | 車刀片 | 材質等級比較表 |
| ISO Code | CARBIDEX | Mitsubishi | Sumiotmo | TaugeTec | SECO |
| P10 | UE6110 | AC810P | TT8105 | TP1500 | |
| P P20 | CX2565 CX2565 | MC6025 VP15TF VP20RT | AC820P AC520U | TT8115 | TP2500 CP250 |
| Steel P30 | CX2565 CX2555 | UE6035 VP15TF VP20RT | AC830P AC530U | TT8125 TT5100 | TP3500 CP500 |
| P40 | CX3565 CX3555 | UE6035 UH6400 | AP830P AC530U | TT8135 TT7100 | TP3500 CP500 |
| M10 | VP10MF MC7015 | AC610M | TP1500 TS2000 | ||
| M M20 | CX3565 CX3555 | VP15TF VP20MF US7020 MC7025 | AC610M AC520U | TT9215 | TM2000 TP2500 TS2500 |
| Stainless Steel M30 | CX3565 CX3555 | VP15TF MP7035 MC7025 US735 | AC6030M AC630M AC530U | TT9225 | TM4000 TP3500 CP500 |
| M40 | MP7035 US735 | AC6040M AC530U | TT9235 TT8020 | TM4000 | |
| K01 | MC5005 | AC405K | TT7005 | ||
| K K10 | CX2565 | UC5015 | AC415K | TT7015 TT7310 | TK1000 TS2000 |
| Cast Iron K20 | CX2565 CX2555 | VP15TF UC5115 | AC420K | TK2000 CP500 | |
| K30 | VP15TF UE6110 |
The above table is selected from a publication for reference only, which is not obtained approval from each brand.
