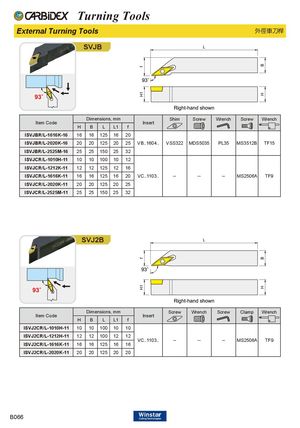

Каталог Carbidex сменные пластины 2020 - страница 180
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
SVJB
| Item Code | Dime | nsions | , mm | Insert | Shim | Screw | Wrench | Screw | Wrench | ||
| H | B | L | L1 | f | |||||||
| ISVJBR/L-1616K-16 | 16 | 16 | 125 | 16 | 20 | ||||||
| ISVJBR/L-2020K-16 | 20 | 20 | 125 | 20 | 25 | VB..1604.. | VSS322 | MDS5035 | PL35 | MS3512B | TF15 |
| ISVJBR/L-2525M-16 | 25 | 25 | 150 | 25 | 32 | ||||||
| ISVJCR/L-1010H-11 | 10 | 10 | 100 | 10 | 12 | ||||||
| ISVJCR/L-1212K-11 | 12 | 12 | 125 | 12 | 16 | ||||||
| ISVJCR/L-1616K-11 | 16 | 16 | 125 | 16 | 20 | VC..1103.. | -- | -- | -- | MS2506A | TF9 |
| ISVJCR/L-2020K-11 | 20 | 20 | 125 | 20 | 25 | ||||||
| ISVJCR/L-2525M-11 | 25 | 25 | 150 | 25 | 32 |
SVJ2B
| Dime | nsions | , mm | Screw | Wrench | Screw | Clamp | Wrench | ||||
| Item Code | H | B | L | L1 | f | Insert | |||||
| ISVJ2CR/L-1010H-11 | 10 | 10 | 100 | 10 | 10 | ||||||
| ISVJ2CR/L-1212H-11 | 12 | 12 | 100 | 12 | 12 | ||||||
| ISVJ2CR/L-1616K-11 | 16 | 16 | 125 | 16 | 16 | VC..1103.. | -- | -- | -- | MS2506A | TF9 |
| ISVJ2CR/L-2020K-11 | 20 | 20 | 125 | 20 | 20 |
