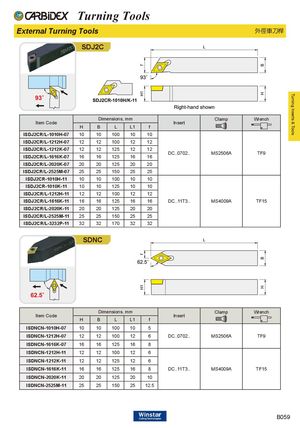

SDJ2C
| Item Code | Dim | ensions, | mm | Insert | Clamp | Wrench | ||
| H | B | L | L1 | f | ||||
| ISDJ2CR/L-1010H-07 | 10 | 10 | 100 | 10 | 10 | |||
| ISDJ2CR/L-1212H-07 | 12 | 12 | 100 | 12 | 12 | |||
| ISDJ2CR/L-1212K-07 | 12 | 12 | 125 | 12 | 12 | DC0702 | MS2506A | TF9 |
| ISDJ2CR/L-1616K-07 | 16 | 16 | 125 | 16 | 16 | .... | ||
| ISDJ2CR/L-2020K-07 | 20 | 20 | 125 | 20 | 20 | |||
| ISDJ2CR/L-2525M-07 | 25 | 25 | 150 | 25 | 25 | |||
| ISDJ2CR-1010H-11 | 10 | 10 | 100 | 10 | 10 | |||
| ISDJ2CR-1010K-11 | 10 | 10 | 125 | 10 | 10 | |||
| ISDJ2CR/L-1212H-11 | 12 | 12 | 100 | 12 | 12 | |||
| ISDJ2CR/L-1616K-11 | 16 | 16 | 125 | 16 | 16 | DC..11T3.. | MS4009A | TF15 |
| ISDJ2CR/L-2020K-11 | 20 | 20 | 125 | 20 | 20 | |||
| ISDJ2CR/L-2525M-11 | 25 | 25 | 150 | 25 | 25 | |||
| ISDJ2CR/L-3232P-11 | 32 | 32 | 170 | 32 | 32 |
SDNC
| Dim | ensions, | mm | Clamp | Wrench | ||||
| Item Code | Insert | |||||||
| H | B | L | L1 | f | ||||
| ISDNCN-1010H-07 | 10 | 10 | 100 | 10 | 5 | |||
| ISDNCN-1212H-07 | 12 | 12 | 100 | 12 | 6 | DC..0702.. | MS2506A | TF9 |
| ISDNCN-1616K-07 | 16 | 16 | 125 | 16 | 8 | |||
| ISDNCN-1212H-11 | 12 | 12 | 100 | 12 | 6 | |||
| ISDNCN-1212K-11 | 12 | 12 | 125 | 12 | 6 | |||
| ISDNCN-1616K-11 | 16 | 16 | 125 | 16 | 8 | DC..11T3.. | MS4009A | TF15 |
| ISDNCN-2020K-11 | 20 | 20 | 125 | 20 | 10 | |||
| ISDNCN-2525M-11 | 25 | 25 | 150 | 25 | 12.5 |
