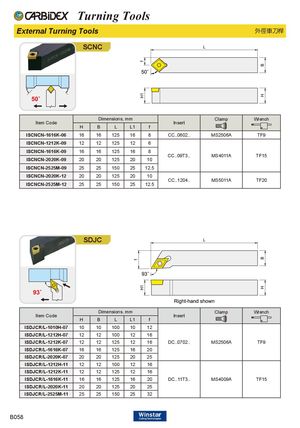

SCNC
| Dim | ensions, | mm | Clamp | Wrench | ||||
| Item Code | Insert | |||||||
| H | B | L | L1 | f | ||||
| ISCNCN-1616K-06 | 16 | 16 | 125 | 16 | 8 | CC..0602.. | MS2506A | TF9 |
| ISCNCN-1212K-09 | 12 | 12 | 125 | 12 | 6 | |||
| ISCNCN-1616K-09 | 16 | 16 | 125 | 16 | 8 | CC09T3 | MS4011A | TF15 |
| ISCNCN-2020K-09 | 20 | 20 | 125 | 20 | 10 | .... | ||
| ISCNCN-2525M-09 | 25 | 25 | 150 | 25 | 12.5 | |||
| ISCNCN-2020K-12 | 20 | 20 | 125 | 20 | 10 | |||
| ISCNCN-2525M-12 | 25 | 25 | 150 | 25 | 12.5 | CC..1204.. | MS5011A | TF20 |
SDJC
| It Cd | Dim | ensions, | mm | It | Clamp | Wrench | ||
| em oe | H | B | L | L1 | f | nser | ||
| ISDJCR/L-1010H-07 | 10 | 10 | 100 | 10 | 12 | |||
| ISDJCR/L-1212H-07 | 12 | 12 | 100 | 12 | 16 | |||
| ISDJCR/L-1212K-07 | 12 | 12 | 125 | 12 | 16 | DC..0702.. | MS2506A | TF9 |
| ISDJCR/L-1616K-07 | 16 | 16 | 125 | 16 | 20 | |||
| ISDJCR/L-2020K-07 | 20 | 20 | 125 | 20 | 25 | |||
| ISDJCR/L-1212H-11 | 12 | 12 | 100 | 12 | 16 | |||
| ISDJCR/L-1212K-11 | 12 | 12 | 125 | 12 | 16 | |||
| ISDJCR/L-1616K-11 | 16 | 16 | 125 | 16 | 20 | DC..11T3.. | MS4009A | TF15 |
| ISDJCR/L-2020K-11 | 20 | 20 | 125 | 20 | 25 | |||
| ISDJCR/L-2525M-11 | 25 | 25 | 150 | 25 | 32 |
