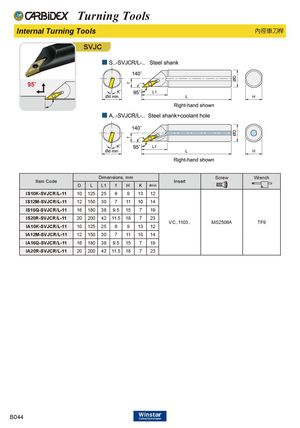

SVJC
| Dime | nsions | , mm | Screw | Wrench | ||||||
| Item Code | Insert | |||||||||
| D | L | L1 | f | H | K | dmin | ||||
| IS10K-SVJCR/L-11 | 10 | 125 | 25 | 6 | 9 | 13 | 12 | |||
| IS12M-SVJCR/L-11 | 12 | 150 | 30 | 7 | 11 | 10 | 14 | |||
| IS16Q-SVJCR/L-11 | 16 | 180 | 38 | 9.5 | 15 | 7 | 19 | |||
| IS20R-SVJCR/L-11 | 20 | 200 | 42 | 11.5 | 18 | 7 | 23 | VC1103 | MS2506A | TF9 |
| IA10K-SVJCR/L-11 | 10 | 125 | 25 | 6 | 9 | 13 | 12 | .... | ||
| IA12M-SVJCR/L-11 | 12 | 150 | 30 | 7 | 11 | 10 | 14 | |||
| IA16Q-SVJCR/L-11 | 16 | 180 | 38 | 9.5 | 15 | 7 | 19 | |||
| IA20R-SVJCR/L-11 | 20 | 200 | 42 | 11.5 | 18 | 7 | 23 |
