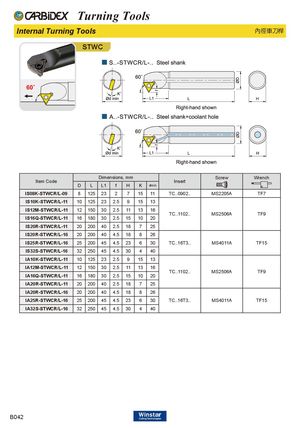

Каталог Carbidex сменные пластины 2020 - страница 156
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
STWC
| Item Code | Dime | nsions | , mm | Insert | Screw | Wrench | ||||
| D | L | L1 | f | H | K | dmin | ||||
| IS08K-STWCR/L-09 | 8 | 125 | 23 | 2 | 7 | 15 | 11 | TC..0902.. | MS2205A | TF7 |
| IS10K-STWCR/L-11 | 10 | 125 | 23 | 2.5 | 9 | 15 | 13 | |||
| IS12M-STWCR/L-11 | 12 | 150 | 30 | 2.5 | 11 | 13 | 16 | TC1102 | MS2506A | TF9 |
| IS16Q-STWCR/L-11 | 16 | 180 | 30 | 2.5 | 15 | 10 | 20 | .... | ||
| IS20R-STWCR/L-11 | 20 | 200 | 40 | 2.5 | 18 | 7 | 25 | |||
| IS20R-STWCR/L-16 | 20 | 200 | 40 | 4.5 | 18 | 8 | 26 | |||
| IS25R-STWCR/L-16 | 25 | 200 | 45 | 4.5 | 23 | 6 | 30 | TC..16T3.. | MS4011A | TF15 |
| IS32S-STWCR/L-16 | 32 | 250 | 45 | 4.5 | 30 | 4 | 40 | |||
| IA10K-STWCR/L-11 | 10 | 125 | 23 | 2.5 | 9 | 15 | 13 | |||
| IA12M-STWCR/L-11 | 12 | 150 | 30 | 2.5 | 11 | 13 | 16 | TC1102 | MS2506A | TF9 |
| IA16Q-STWCR/L-11 | 16 | 180 | 30 | 2.5 | 15 | 10 | 20 | .... | ||
| IA20R-STWCR/L-11 | 20 | 200 | 40 | 2.5 | 18 | 7 | 25 | |||
| IA20R-STWCR/L-16 | 20 | 200 | 40 | 4.5 | 18 | 8 | 26 | |||
| IA25R-STWCR/L-16 | 25 | 200 | 45 | 4.5 | 23 | 6 | 30 | TC..16T3.. | MS4011A | TF15 |
| IA32S-STWCR/L-16 | 32 | 250 | 45 | 4.5 | 30 | 4 | 40 |
