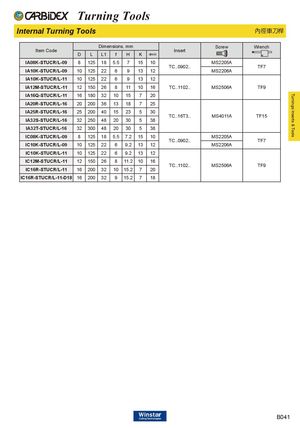

| Internal Turning | To | ols | 內徑車刀桿 | |||||||
| Item Code | Dime | nsion | s, mm | Insert | Screw | Wrench | ||||
| D | L | L1 | f | H | K | dmin | ||||
| IA08K-STUCR/L-09 | 8 | 125 | 18 | 5.5 | 7 | 15 | 10 | TC0902 | MS2205A | TF7 |
| IA10K-STUCR/L-09 | 10 | 125 | 22 | 6 | 9 | 13 | 12 | .... | MS2206A | |
| IA10K-STUCR/L-11 | 10 | 125 | 22 | 6 | 9 | 13 | 12 | |||
| IA12M-STUCR/L-11 | 12 | 150 | 26 | 8 | 11 | 10 | 16 | TC..1102.. | MS2506A | TF9 |
| IA16Q-STUCR/L-11 | 16 | 180 | 32 | 10 | 15 | 7 | 20 | |||
| IA20R-STUCR/L-16 | 20 | 200 | 36 | 13 | 18 | 7 | 25 | |||
| IA25R-STUCR/L-16 | 25 | 200 | 40 | 15 | 23 | 5 | 30 | TC16T3 | MS4011A | TF15 |
| IA32S-STUCR/L-16 | 32 | 250 | 48 | 20 | 30 | 5 | 38 | .... | ||
| IA32T-STUCR/L-16 | 32 | 300 | 48 | 20 | 30 | 5 | 38 | |||
| IC08K-STUCR/L-09 | 8 | 125 | 18 | 5.5 | 7.2 | 15 | 10 | TC0902 | MS2205A | TF7 |
| IC10K-STUCR/L-09 | 10 | 125 | 22 | 6 | 9.2 | 13 | 12 | .... | MS2206A | |
| IC10K-STUCR/L-11 | 10 | 125 | 22 | 6 | 9.2 | 13 | 12 | |||
| IC12M-STUCR/L-11 | 12 | 150 | 26 | 8 | 11.2 | 10 | 16 | TC1102 | MS2506A | TF9 |
| IC16R-STUCR/L-11 | 16 | 200 | 32 | 10 | 15.2 | 7 | 20 | .... | ||
| IC16R-STUCR/L-11-D18 | 16 | 200 | 32 | 9 | 15.2 | 7 | 18 |
