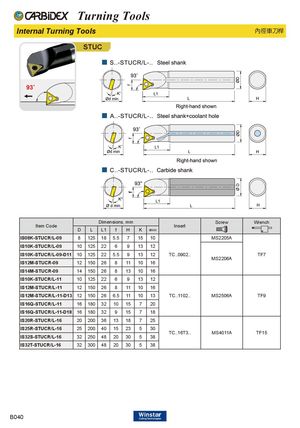

STUC
| Item Code | Dime | nsions | , mm | Insert | Screw | Wrench | ||||
| D | L | L1 | f | H | K | dmin | ||||
| IS08K-STUCR/L-09 | 8 | 125 | 18 | 5.5 | 7 | 15 | 10 | MS2205A | ||
| IS10K-STUCR/L-09 | 10 | 125 | 22 | 6 | 9 | 13 | 12 | |||
| IS10K-STUCR/L-09-D11 | 10 | 125 | 22 | 5.5 | 9 | 13 | 12 | TC..0902.. | TF7 | |
| IS12M-STUCR-09 | 12 | 150 | 26 | 8 | 11 | 10 | 16 | MS2206A | ||
| IS14M-STUCR-09 | 14 | 150 | 26 | 8 | 13 | 10 | 16 | |||
| IS10K-STUCR/L-11 | 10 | 125 | 22 | 6 | 9 | 13 | 12 | |||
| IS12M-STUCR/L-11 | 12 | 150 | 26 | 8 | 11 | 10 | 16 | |||
| IS12M-STUCR/L-11-D13 | 12 | 150 | 26 | 6.5 | 11 | 10 | 13 | TC..1102.. | MS2506A | TF9 |
| IS16Q-STUCR/L-11 | 16 | 180 | 32 | 10 | 15 | 7 | 20 | |||
| IS16Q-STUCR/L-11-D18 | 16 | 180 | 32 | 9 | 15 | 7 | 18 | |||
| IS20R-STUCR/L-16 | 20 | 200 | 36 | 13 | 18 | 7 | 25 | |||
| IS25R-STUCR/L-16 | 25 | 200 | 40 | 15 | 23 | 5 | 30 | |||
| IS32S-STUCR/L-16 | 32 | 250 | 48 | 20 | 30 | 5 | 38 | TC..16T3.. | MS4011A | TF15 |
| IS32T-STUCR/L-16 | 32 | 300 | 48 | 20 | 30 | 5 | 38 |
