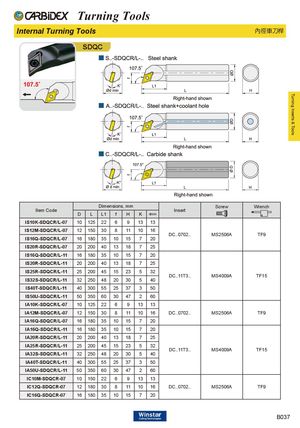

Каталог Carbidex сменные пластины 2020 - страница 151
Навигация
Каталог Winstar монолитный инструмент 2020
Каталог Winstar фрезерование
Основной каталог Winstar 2021
Общий каталог Winstar 2015 - 2016
Брошюра Winstar основная номенклатура 2021
Каталог Winstar инструмент со сменными пластинами 2020
SDQC
| Item Code | Dime | nsion | s, mm | Insert | Screw | Wrench | ||||
| D | L | L1 | f | H | K | dmin | ||||
| IS10K-SDQCR/L-07 | 10 | 125 | 22 | 6 | 9 | 13 | 13 | |||
| IS12M-SDQCR/L-07 | 12 | 150 | 30 | 8 | 11 | 10 | 16 | DC0702 | MS2506A | TF9 |
| IS16Q-SDQCR/L-07 | 16 | 180 | 35 | 10 | 15 | 7 | 20 | .... | ||
| IS20R-SDQCR/L-07 | 20 | 200 | 40 | 13 | 18 | 7 | 25 | |||
| IS16Q-SDQCR/L-11 | 16 | 180 | 35 | 10 | 15 | 7 | 20 | |||
| IS20R-SDQCR/L-11 | 20 | 200 | 40 | 13 | 18 | 7 | 25 | |||
| IS25R-SDQCR/L-11 | 25 | 200 | 45 | 15 | 23 | 5 | 32 | DC11T3 | MS4009A | TF15 |
| IS32S-SDQCR/L-11 | 32 | 250 | 48 | 20 | 30 | 5 | 40 | .... | ||
| IS40T-SDQCR/L-11 | 40 | 300 | 55 | 25 | 37 | 3 | 50 | |||
| IS50U-SDQCR/L-11 | 50 | 350 | 60 | 30 | 47 | 2 | 60 | |||
| IA10K-SDQCR/L-07 | 10 | 125 | 22 | 6 | 9 | 13 | 13 | |||
| IA12M-SDQCR/L-07 | 12 | 150 | 30 | 8 | 11 | 10 | 16 | DC..0702.. | MS2506A | TF9 |
| IA16Q-SDQCR/L-07 | 16 | 180 | 35 | 10 | 15 | 7 | 20 | |||
| IA16Q-SDQCR/L-11 | 16 | 180 | 35 | 10 | 15 | 7 | 20 | |||
| IA20R-SDQCR/L-11 | 20 | 200 | 40 | 13 | 18 | 7 | 25 | |||
| IA25R-SDQCR/L-11 | 25 | 200 | 45 | 15 | 23 | 5 | 32 | DC11T3 | MS4009A | TF15 |
| IA32S-SDQCR/L-11 | 32 | 250 | 48 | 20 | 30 | 5 | 40 | .... | ||
| IA40T-SDQCR/L-11 | 40 | 300 | 55 | 25 | 37 | 3 | 50 | |||
| IA50U-SDQCR/L-11 | 50 | 350 | 60 | 30 | 47 | 2 | 60 | |||
| IC10M-SDQCR-07 | 10 | 150 | 22 | 6 | 9 | 13 | 13 | |||
| IC12Q-SDQCR-07 | 12 | 180 | 30 | 8 | 11 | 10 | 16 | DC..0702.. | MS2506A | TF9 |
| IC16Q-SDQCR-07 | 16 | 180 | 35 | 10 | 15 | 7 | 20 |
