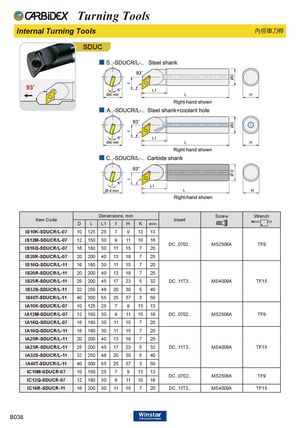

SDUC
| Item Code | Dime | nsions | , mm | Insert | Screw | Wrench | ||||
| D | L | L1 | f | H | K | dmin | ||||
| IS10K-SDUCR/L-07 | 10 | 125 | 25 | 7 | 9 | 13 | 13 | |||
| IS12M-SDUCR/L-07 | 12 | 150 | 30 | 9 | 11 | 10 | 16 | DC0702 | MS2506A | TF9 |
| IS16Q-SDUCR/L-07 | 16 | 180 | 30 | 11 | 15 | 7 | 20 | .... | ||
| IS20R-SDUCR/L-07 | 20 | 200 | 40 | 13 | 18 | 7 | 25 | |||
| IS16Q-SDUCR/L-11 | 16 | 180 | 30 | 11 | 15 | 7 | 20 | |||
| IS20R-SDUCR/L-11 | 20 | 200 | 40 | 13 | 18 | 7 | 25 | |||
| IS25R-SDUCR/L-11 | 25 | 200 | 45 | 17 | 23 | 5 | 32 | DC..11T3.. | MS4009A | TF15 |
| IS32S-SDUCR/L-11 | 32 | 250 | 48 | 20 | 30 | 5 | 40 | |||
| IS40T-SDUCR/L-11 | 40 | 300 | 55 | 25 | 37 | 3 | 50 | |||
| IA10K-SDUCR/L-07 | 10 | 125 | 25 | 7 | 9 | 13 | 13 | |||
| IA12M-SDUCR/L-07 | 12 | 150 | 30 | 9 | 11 | 10 | 16 | DC..0702.. | MS2506A | TF9 |
| IA16Q-SDUCR/L-07 | 16 | 180 | 30 | 11 | 15 | 7 | 20 | |||
| IA16Q-SDUCR/L-11 | 16 | 180 | 30 | 11 | 15 | 7 | 20 | |||
| IA20R-SDUCR/L-11 | 20 | 200 | 40 | 13 | 18 | 7 | 25 | |||
| IA25R-SDUCR/L-11 | 25 | 200 | 45 | 17 | 23 | 5 | 32 | DC..11T3.. | MS4009A | TF15 |
| IA32S-SDUCR/L-11 | 32 | 250 | 48 | 20 | 30 | 5 | 40 | |||
| IA40T-SDUCR/L-11 | 40 | 300 | 55 | 25 | 37 | 3 | 50 | |||
| IC10M-SDUCR-07 | 10 | 150 | 25 | 7 | 9 | 13 | 13 | |||
| IC12Q-SDUCR-07 | 12 | 180 | 30 | 9 | 11 | 10 | 16 | DC..0702.. | MS2506A | TF9 |
| IC16R-SDUCR-11 | 16 | 200 | 30 | 11 | 15 | 7 | 20 | DC..11T3.. | MS4009A | TF15 |
