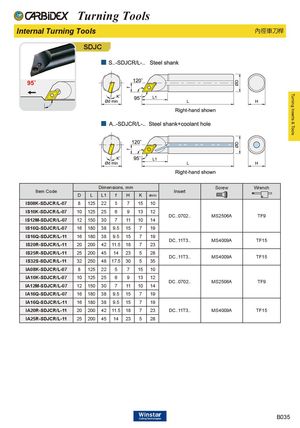

SDJC
| Item Code | Dime | nsions | , mm | Insert | Screw | Wrench | ||||
| D | L | L1 | f | H | K | dmin | ||||
| IS08K-SDJCR/L-07 | 8 | 125 | 22 | 5 | 7 | 15 | 10 | |||
| IS10K-SDJCR/L-07 | 10 | 125 | 25 | 6 | 9 | 13 | 12 | DC0702 | MS2506A | TF9 |
| IS12M-SDJCR/L-07 | 12 | 150 | 30 | 7 | 11 | 10 | 14 | .... | ||
| IS16Q-SDJCR/L-07 | 16 | 180 | 38 | 9.5 | 15 | 7 | 19 | |||
| IS16Q-SDJCR/L-11 | 16 | 180 | 38 | 9.5 | 15 | 7 | 19 | DC11T | MS4A | TF1 |
| IS20R-SDJCR/L-11 | 20 | 200 | 42 | 11.5 | 18 | 7 | 23 | ..3.. | 009 | 5 |
| IS25R-SDJCR/L-11 | 25 | 200 | 45 | 14 | 23 | 5 | 28 | |||
| IS32S-SDJCR/L-11 | 32 | 250 | 48 | 17.5 | 30 | 5 | 35 | DC..11T3.. | MS4009A | TF15 |
| IA08K-SDJCR/L-07 | 8 | 125 | 22 | 5 | 7 | 15 | 10 | |||
| IA10K-SDJCR/L-07 | 10 | 125 | 25 | 6 | 9 | 13 | 12 | DC0702 | MS2506A | TF9 |
| IA12M-SDJCR/L-07 | 12 | 150 | 30 | 7 | 11 | 10 | 14 | .... | ||
| IA16Q-SDJCR/L-07 | 16 | 180 | 38 | 9.5 | 15 | 7 | 19 | |||
| IA16Q-SDJCR/L-11 | 16 | 180 | 38 | 9.5 | 15 | 7 | 19 | |||
| IA20R-SDJCR/L-11 | 20 | 200 | 42 | 11.5 | 18 | 7 | 23 | DC..11T3.. | MS4009A | TF15 |
| IA25R-SDJCR/L-11 | 25 | 200 | 45 | 14 | 23 | 5 | 28 |
